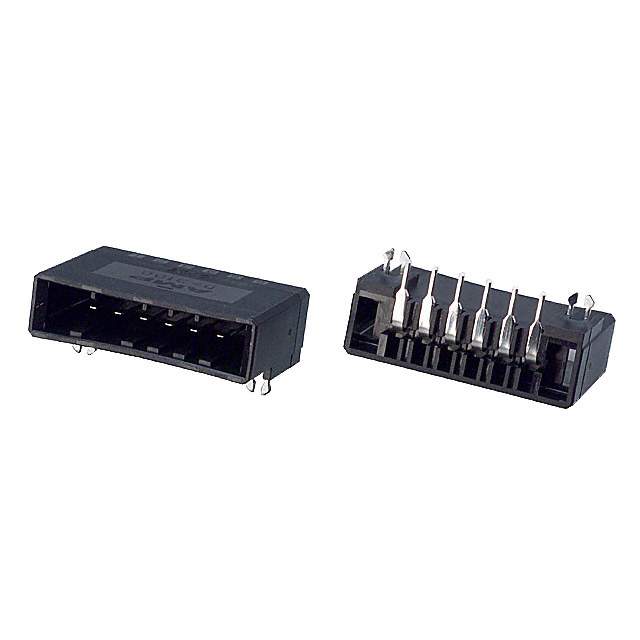

1-178296-5

AMP FROM TE CONNECTIVITY  1-178296-5  线至板连接器, Dynamic D-3100S系列, 6 触点, 针座, 3.81 mm, 通孔安装, 1 排

DYNAMIC 3100 HDR ASSY 6P H K/X

Product Highlights

Connector

Housing Gender = Header - Tab

Preloaded

Contact Gender = Tab

Terminate To Printed Circuit Board

得捷:
CONN HEADER R/A 6POS 3.81MM

贸泽:
Headers & Wire Housings HDR 6 POS R/A TIN KEY-X

e络盟:
线至板连接器, Dynamic D-3100S系列, 6 触点, 针座, 3.81 mm, 通孔安装, 1 排

艾睿:
Harsh and stressful environments are no match for this robust 1-178296-5 power connector from TE Connectivity. This HDR connector&s;s 6 contacts that are made out of copper alloy and plated with tin over nickel. This connector has a single port. It has a right angle body orientation. Its pitch is 3.81 mm. It has a header type gender. It has a maximum voltage rating of 250 VAC. 1-178296-5 is housed in nylon. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 33.05 mm long, 10.85 mm tall and 22.1 mm deep. Its 6 terminals use the solder termination method. This power connector has a minimum operating temperature of -55 °C and a maximum of 105 °C.

安富利:
Conn Power HDR 6 POS 3.81mm Solder RA Thru-Hole 6 Terminal 1 Port Tube

Chip1Stop:
Conn Power HDR 6 POS 3.81mm Solder RA Thru-Hole 6 Terminal 1 Port Tube

Verical:
Conn Power HDR 6 POS 3.81mm Solder RA Thru-Hole 6 Terminal 1 Port Tube

MASTER:
Conn Power HDR 6 POS 3.81mm Solder RA Thru-Hole 6 Terminal 1 Port Tube

Powell:
Dynamic Series Connectors

Online Components:
DYNAMIC 3100 HDR ASSY 6P H K/X

ICbanQ:
Heavy Duty Power Connectors HDR 6 POS R/A TIN KEY-X

Electro Sonic:
DYNAMIC 3100 HDR ASSY 6P H K/X
