Conn High Performance Interconnect HDR 14POS 1.25mm Solder RA SMD T/R
1.25 WTB, HDR, SMT, RA, 14P
得捷:
CONN HEADER SMD R/A 14POS 1.25MM
艾睿:

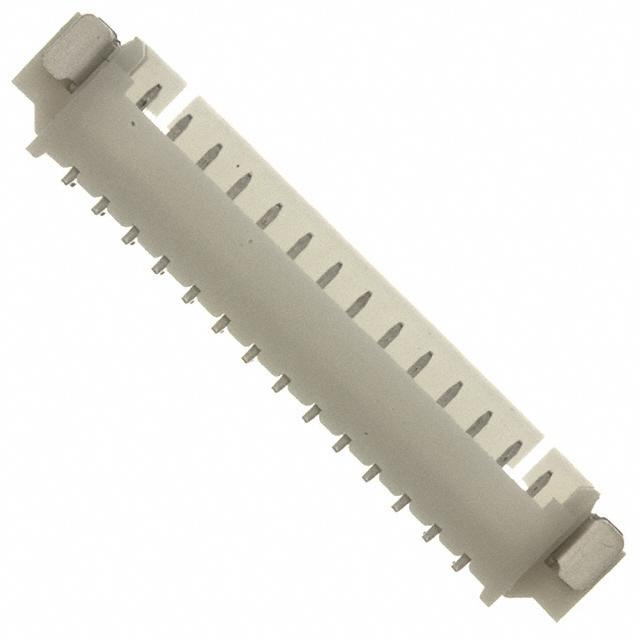

Make strong and binding connections on your circuit boards by adopting this high performance interconnect 1-1734261-4 connector from TE Connectivity. This HDR connector&s;s 14 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a right angle body orientation. It has a maximum voltage rating of 50 VDC|50VAC. It has a header type gender. Its pitch is 1.25 mm. This is a 1-row connector. This device has a maximum current rating of 1 A/contact. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This connector has an operating temperature of -25 to 85 °C. 1-1734261-4 is housed in natural thermoplastic. This product is 22.79 mm long, 3.45 mm tall and 4.7 mm deep. It uses the solder termination method.
安富利:
Conn High Performance Interconnect HDR 14 POS 1.25mm Solder RA SMD T/R
Chip1Stop:
Conn High Performance Interconnect HDR 14 POS 1.25mm Solder RA SMD T/R
Verical:
Conn High Performance Interconnect HDR 14 POS 1.25mm Solder RA SMD T/R
MASTER:
WIRE TO BOARD MALE HEADER, 1.25 MM PITCH, SMT, RIGHT ANGLE TYPE
Powell:
High Performance Interconnects HPI
Online Components:
1.25 WTB, HDR, SMT, RA, 14P
ICbanQ:
Headers 14 POS HDR R/A SMT 1.25mm
Electro Sonic:
1.25 WTB, HDR, SMT, RA, 14P
触点数 14
触点电镀 Nickel, Tin, Tin over Nickel
排数 1
方向 Right Angle
易燃性等级 UL 94 V-0
针脚数 14
额定电流Max 1A/触头
工作温度Max 85 ℃
工作温度Min -20 ℃
额定电压Max 100 VAC
接触电阻Max 20 mΩ
安装方式 Surface Mount
高度 3.45 mm
外壳颜色 Natural
颜色 Natural
触点材质 Phosphor Bronze
工作温度 -20℃ ~ 85℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 汽车,通用,工业,医疗
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1-1734261-4 TE Connectivity 泰科 | 当前型号 | 当前型号 |
4-1734261-4 泰科 | 功能相似 | 1-1734261-4和4-1734261-4的区别 |
