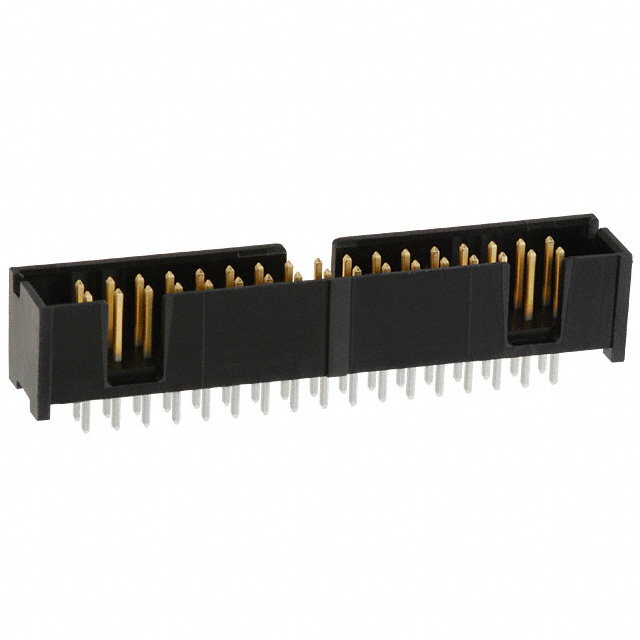

103308-7

Conn Shrouded Header HDR 34POS 2.54mm Solder ST Thru-Hole Conn Shrouded Header HDR 34POS 2.54mm Solder ST Thru-Hole

034 LOPRO HDR SP 15DP

Product Highlights

Connector Type = Pin Headers

Low Profile

Number of Positions = 34

2.54 x 2.54 mm Centerline, Matrix

PCB Mount Angle = Vertical

得捷:
CONN HEADER VERT 34POS 2.54MM

艾睿:
This shrouded 103308-7 header connector from TE Connectivity reduces the possibility of accidentally shorting pins when a board is being used. This HDR connector&s;s 34 contacts that are made out of copper alloy and plated with gold over palladium nickel over nickel|gold over nickel. This is a 2-row connector. It has a header type gender. It has a straight body orientation. Its pitch is 2.54 mm. This device has a maximum current rating of 1 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This connector has an operating temperature of -65 to 105 °C. It uses the solder termination method. 103308-7 is housed in black thermoplastic. This product is 50.8 mm long, 9.77 mm tall and 9.14 mm deep.

Allied Electronics:
LO/PRO STD HDR, 034 LOPRO HDR SP 15DP

安富利:
Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole

Newark:
# AMP - TE CONNECTIVITY  103308-7  Wire-To-Board Connector, 2.54 mm, 34 Contacts, Header, AMPMODU Mod II Series, Through Hole

MASTER:
HEADER ASSY, LOW PROFILE, AMP-LATCH

Powell:
Pin and Pinless Headers AMP-LATCH

Online Components:
034 LOPRO HDR SP 15DP

Electro Sonic:
034 LOPRO HDR SP 15DP
