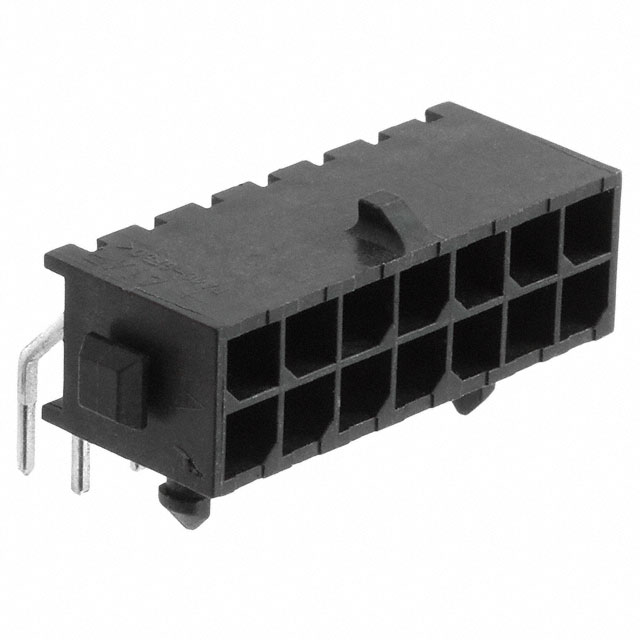

1-794619-4

Conn Power HDR 14POS 3mm Solder RA Thru-Hole 14 Terminal 1Port

Connector Header Through Hole, Right Angle 14 position 0.118" 3.00mm

得捷:
CONN HEADER R/A 14POS 3MM

艾睿:
Harsh and stressful environments are no match for this robust 1-794619-4 power connector from TE Connectivity. This HDR connector&s;s 14 contacts that are made out of brass and plated with gold over nickel. This connector has a single port. It has a right angle body orientation. It has a maximum voltage rating of 250 VAC. It has a header type gender. Its pitch is 3 mm. 1-794619-4 is housed in nylon. This device has a maximum current rating of 5 A/contact. This product is 25 mm long, 8.67 mm tall and 11.92 mm deep. This power connector has a minimum operating temperature of -40 °C and a maximum of 105 °C. Its 14 terminals use the solder termination method.

Powell:
3mm Centerline, 250V, 5 A max.
