1-87227-2

Conn Unshrouded Header HDR 24POS 2.54mm Solder ST Thru-Hole

Connector Header Through Hole 24 position 0.100" 2.54mm

得捷:
CONN HEADER VERT 24POS 2.54MM

艾睿:

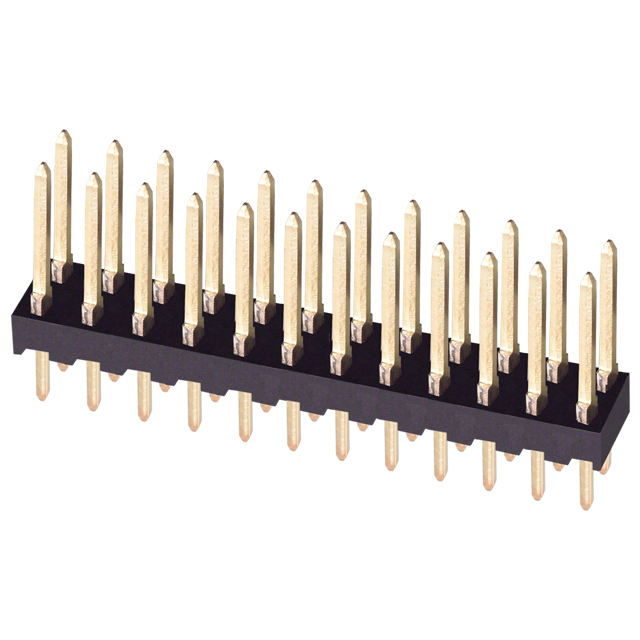

Make strong and binding connections on your circuit boards by adopting this unshrouded 1-87227-2 connector from TE Connectivity. This HDR connector&s;s 24 contacts that are made out of copper alloy and plated with gold over nickel. This is a 2-row connector. Its pitch is 2.54 mm. It has a header type gender. It has a straight body orientation. This device has a maximum current rating of 3 A/contact. This product is 30.07 mm long, 10.37 mm tall and 5.08 mm deep. It uses the solder termination method. This connector has an operating temperature of -65 to 105 °C. 1-87227-2 is housed in black thermoplastic.

安富利:
Conn Unshrouded Header HDR 24 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn Unshrouded Header M 24 POS 2.54mm Solder ST Top Entry Thru-Hole Carton

Powell:
.100 inch AMPMODU Headers
