1-5102321-1

集管和线壳 60P UNIV HDR VERT LG

针座 通孔 60 位置 0.100"（2.54mm）

得捷:
CONN HEADER VERT 60POS 2.54MM

贸泽:
集管和线壳 60P UNIV HDR VERT LG

艾睿:

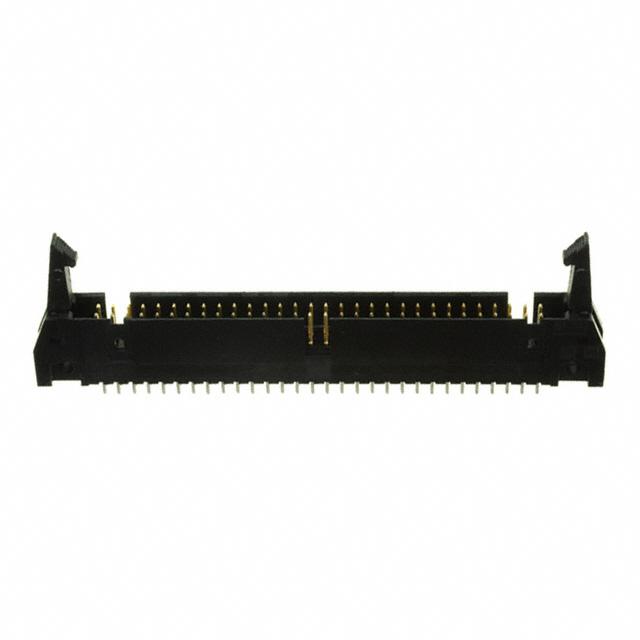

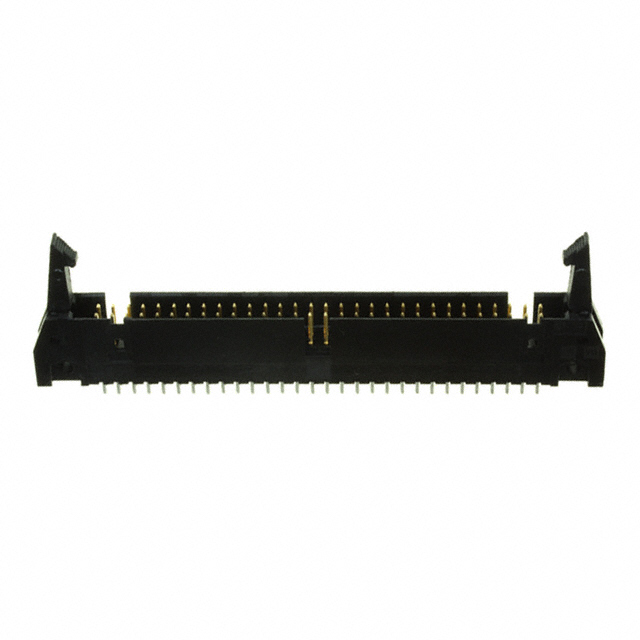

TE Connectivity&s;s ejector 1-5102321-1 header connector is a great way to reduce safety concerns in projects where there is a possibility of accidentally shorting electronic components. This HDR connector&s;s 60 contacts that are made out of phosphor bronze|brass and plated with gold over palladium nickel over nickel|gold over nickel. This is a 2-row connector. It has a straight body orientation. It has a header type gender. It has a maximum voltage rating of 250 VAC. Its pitch is 2.54 mm. This device has a maximum current rating of 1 A/contact. This component comes in tray packaging, useful for fast picking and placing of your parts. This product is 95.5 mm long, 27.3 mm tall and 8.53 mm deep. It uses the solder termination method. This connector has an operating temperature of -65 to 125 °C. 1-5102321-1 is housed in black nylon|polyester.

安富利:
Conn Ejector Header HDR 60 POS 2.54mm Solder ST Thru-Hole

Chip1Stop:
Conn Ejector Header HDR 60 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn Ejector Header HDR 60 POS 2.54mm Solder ST Thru-Hole Tray

MASTER:
Conn Ejector Header HDR 60 POS 2.54mm Solder ST Thru-Hole Tray

Powell:
Pin and Pinless Headers AMP-LATCH

Online Components:
A/L UNIV HDR 60P VERT LG LAT

Electro Sonic:
A/L UNIV HDR 60P VERT LG LAT
