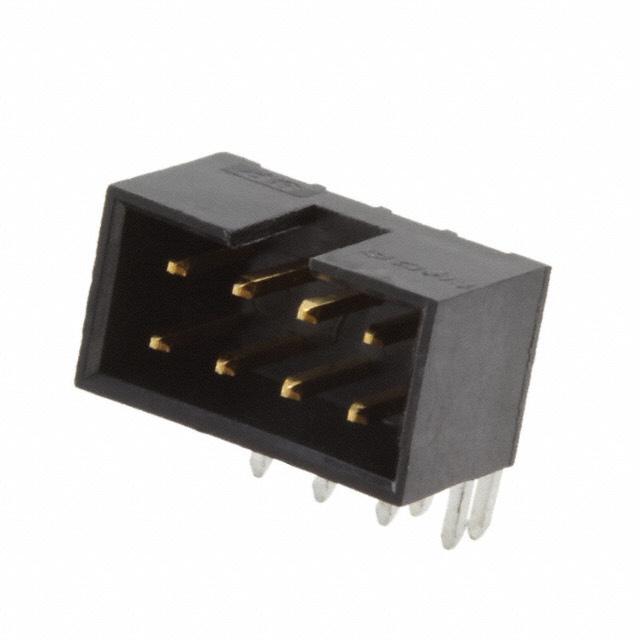

1734493-8

Conn Shrouded Header HDR 8POS 2mm Solder RA Thru-Hole Tube

Connector Header Through Hole, Right Angle 8 position 0.079" 2.00mm

得捷:
CONN HEADER R/A 8POS 2MM

贸泽:
Headers & Wire Housings AMPMODU 2.00mm 8p R/A, 8u

艾睿:
Reduce safety concerns with this shrouded 1734493-8 header connector from TE Connectivity which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This HDR connector&s;s 8 contacts that are made out of brass and plated with gold over nickel. Its pitch is 2 mm. This is a 2-row connector. It has a right angle body orientation. It has a maximum voltage rating of 250 VAC. It has a header type gender. This device has a maximum current rating of 1 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. 1734493-8 is housed in black nylon 6t. This connector has an operating temperature of -40 to 105 °C. This product is 9.95 mm long, 5.5 mm tall and 8.65 mm deep.
