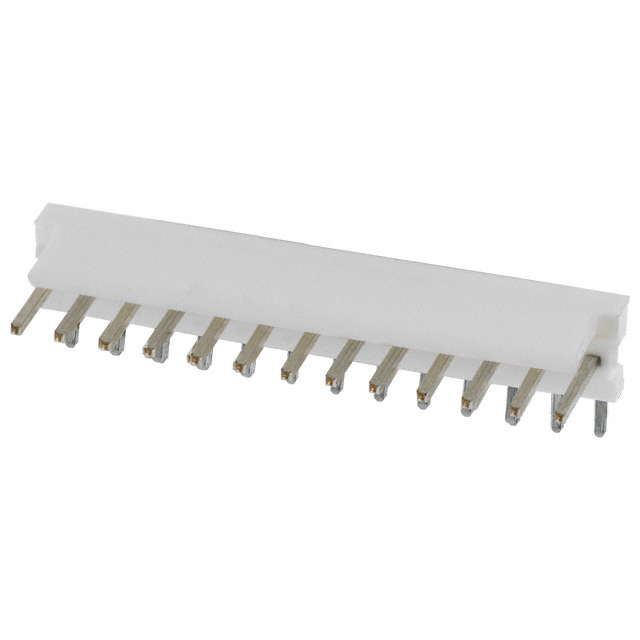

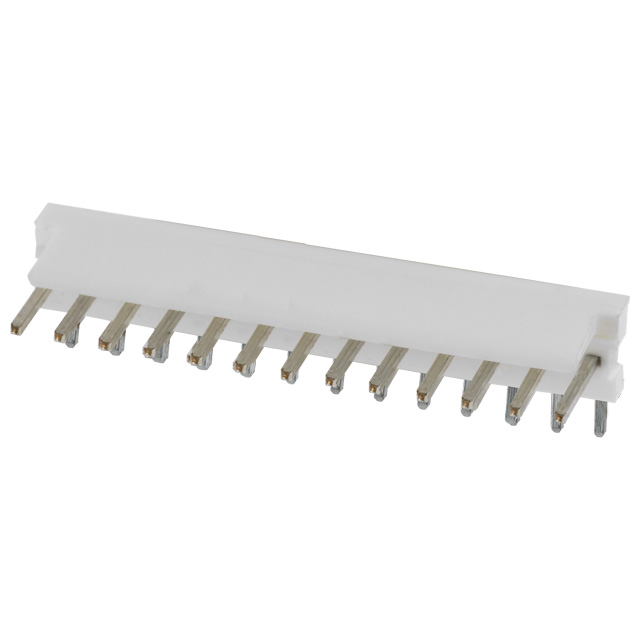

1-640455-3

集管和线壳 13P HDR ASSY SQ R/A POLARIZED

13P MTA100 HDR ASSY SQ R/A POL

Product Highlights

MTA-100 Connectors

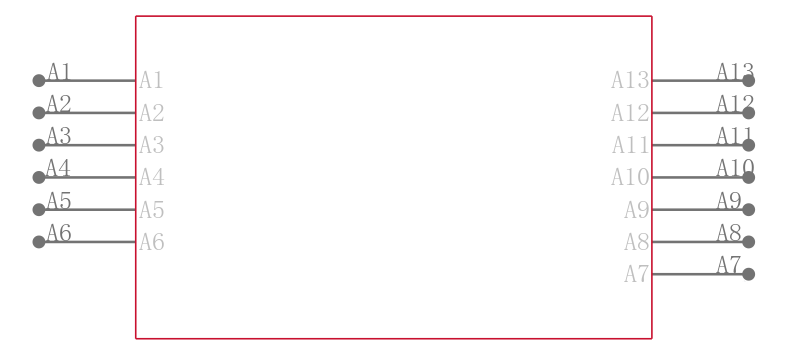

Number of Positions = 13

Mating Type = Header

Wire-to-Board Application

2.54 mm Contact Centerline Spacing

得捷:
CONN HEADER R/A 13POS 2.54MM

贸泽:
集管和线壳 13P HDR ASSY SQ R/A POLARIZED

艾睿:

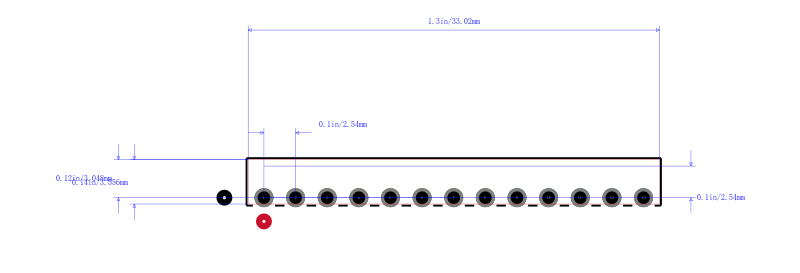

Support physical configuration options for jumper posts by mounting this wire to board 1-640455-3 header connector from TE Connectivity. This HDR connector&s;s 13 contacts that are made out of copper alloy and plated with tin. This is a 1-row connector. It has a maximum voltage rating of 250 VAC. Its pitch is 2.54 mm. It has a right angle body orientation. It has a header type gender. This device has a maximum current rating of 5 A/contact. 1-640455-3 is housed in white polyester. This connector has an operating temperature of -55 to 105 °C. It uses the solder termination method. This product is 33.02 mm long, 5.72 mm tall and 11.05 mm deep.

Chip1Stop:
Conn Wire to Board HDR 13 POS 2.54mm Solder RA Thru-Hole Package

Verical:
Conn Wire to Board HDR 13 POS 2.54mm Solder RA Thru-Hole Package

Newark:
# AMP - TE CONNECTIVITY  1-640455-3  Wire-To-Board Connector, 2.54 mm, 13 Contacts, Header, MTA-100 Series, Through Hole, 1 Rows

MASTER:
MTA-.100 HDR ASSY, POLARIZED, NOTCHED, .025 SQUARE

Online Components:
13P MTA100 HDR ASSY SQ R/A POL

Electro Sonic:
13P MTA100 HDR ASSY SQ R/A POL
