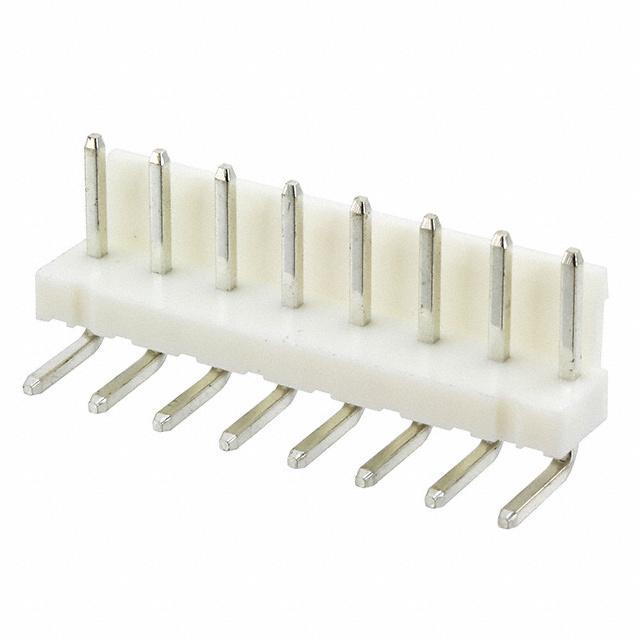

1744048-8

Conn Power HDR 8POS 5.08mm Solder RA Thru-Hole 8 Terminal 1Port Bag

针座连接器 通孔，直角 8 位置 0.200"（5.08mm）

得捷:
CONN HEADER R/A 8POS 5.08MM

艾睿:
Harsh and stressful environments are no match for this robust 1744048-8 power connector from TE Connectivity. This HDR connector&s;s 8 contacts that are made out of copper alloy and plated with tin. It has a maximum voltage rating of 250 VAC. Its pitch is 5.08 mm. This connector has a single port. It has a header type gender. It has a right angle body orientation. This device has a maximum current rating of 7.5 A/contact. 1744048-8 is housed in nylon. Its 8 terminals use the solder termination method. This power connector has an operating temperature range of -25 °C to 105 °C. This product is 8.52 mm tall.

Verical:
Conn Wire to Board HDR 8 POS 5.08mm Solder RA Side Entry Thru-Hole Bag

Newark:
# AMP - TE CONNECTIVITY  1744048-8  08P EC PWR.200 CL HDR ASSY RA New

MASTER:
HEADER ASSEMBLY-ECONOMY POWER RIGHT ANGLE, .200 CENTER LINE

Online Components:
08P EC PWR.200 CL HDR ASSY RA

Electro Sonic:
08P EC PWR.200 CL HDR ASSY RA
