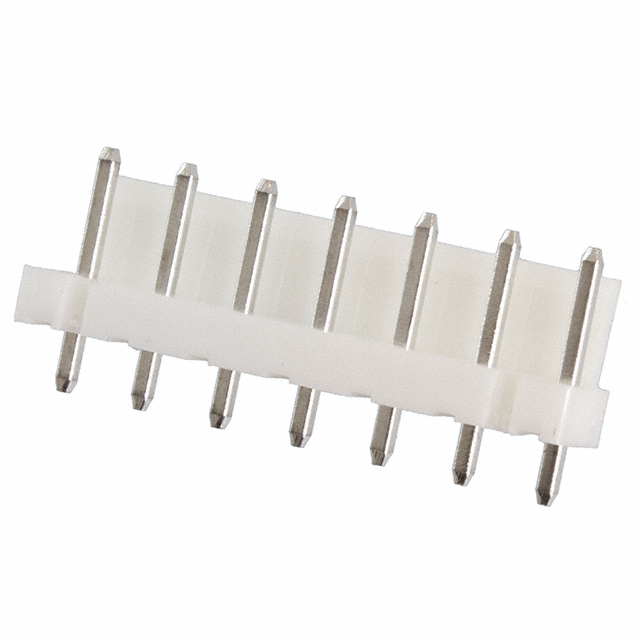

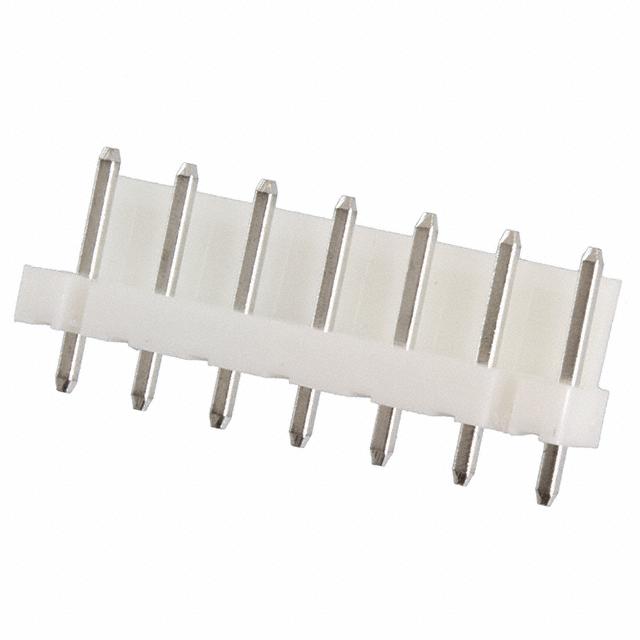

1744037-7

Conn Wire to Board HDR 7POS 5.08mm Solder ST Thru-Hole Bag

针座 通孔 7 位置 0.200"（5.08mm）

得捷:
CONN HEADER VERT 7POS 5.08MM

艾睿:
Mounting this wire to board 1744037-7 header connector from TE Connectivity to your printed circuit board can help you support multiple physical configuration options. This HDR connector&s;s 7 contacts that are made out of copper alloy and plated with tin over nickel. It has a maximum voltage rating of 250 VAC. This is a 1-row connector. Its pitch is 5.08 mm. It has a header type gender. It has a straight body orientation. This device has a maximum current rating of 7.5 A/contact. This connector has an operating temperature of -25 to 105 °C. This product is 31.82 mm long, 10.9 mm tall and 8.52 mm deep. It uses the solder termination method. 1744037-7 is housed in natural nylon 6/6.

Verical:
Conn Wire to Board HDR 7 POS 5.08mm Solder ST Top Entry Thru-Hole Bag

MASTER:
Conn Wire to Board HDR 7 POS 5.08mm Solder ST Top Entry Thru-Hole Bag

Online Components:
07P EC PWR.200 CL HDR ASSY VRT

Electro Sonic:
Conn Wire to Board HDR 7 POS 5.08mm Solder ST Top Entry Thru-Hole Bag
