103735-7

Conn Shrouded Header HDR 8POS 2.54mm Solder ST Thru-Hole Tube

针座 通孔 8 位置 0.100"（2.54mm）

得捷:
CONN HEADER VERT 8POS 2.54MM

艾睿:

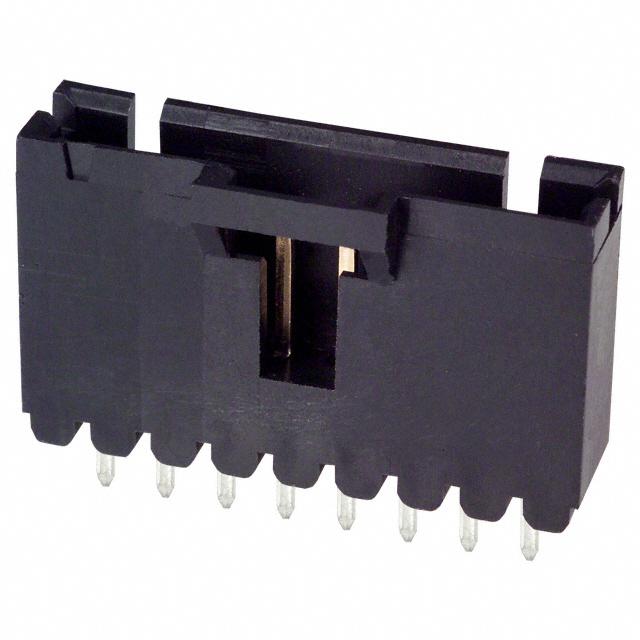

TE Connectivity&s;s shrouded 103735-7 header connector is a great way to reduce safety concerns in projects where there is a possibility of accidentally shorting electronic components. This HDR connector&s;s 8 contacts that are made out of brass and plated with gold over nickel. It has a straight body orientation. Its pitch is 2.54 mm. This is a 1-row connector. It has a header type gender. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 22.86 mm long, 13.59 mm tall and 6.98 mm deep. It uses the solder termination method. 103735-7 is housed in black thermoplastic. This connector has an operating temperature of -65 to 105 °C.

安富利:
Conn Shrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Tube

MASTER:
HDR ASSY, VERT, SINGLE ROW 2.54[.100]C, 0.64[.025] SQ POST, WITH PLZN & LATCHING

Powell:
.100 AMPMODU Headers, Housings & Contacts

Online Components:
08 MTE HDR SRST LATCH .100CL

Electro Sonic:
08 MTE HDR SRST LATCH .100CL
