102203-6

Conn Shrouded Header HDR 9POS 2.54mm Solder RA Thru-Hole Gang of Tubes

Connector Header Through Hole, Right Angle 9 position 0.100" 2.54mm

得捷:
CONN HEADER R/A 9POS 2.54MM

艾睿:

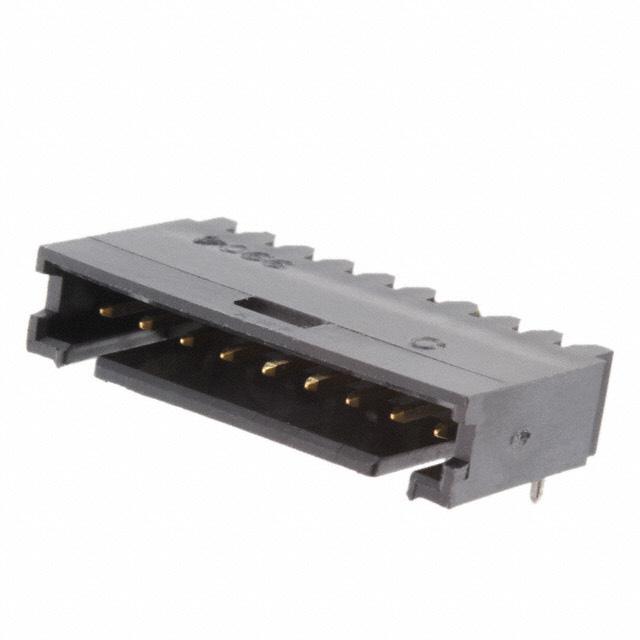

Mount this shrouded 102203-6 header connector from TE Connectivity on a jumper post on your PCB to support physical configuration options. This HDR connector&s;s 9 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. It has a right angle body orientation. Its pitch is 2.54 mm. This is a 1-row connector. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. This product is 25.91 mm long, 5.81 mm tall and 13.94 mm deep. This connector has an operating temperature of -55 to 105 °C. 102203-6 is housed in black thermoplastic.

安富利:
Conn Shrouded Header HDR 9 POS 2.54mm Solder RA Thru-Hole Gang of Tubes

Powell:
.100 inch AMPMODU Headers

Electro Sonic:
09 MODII HDR SRRA SHRD .100CL
