1723162106

1723162106图片1

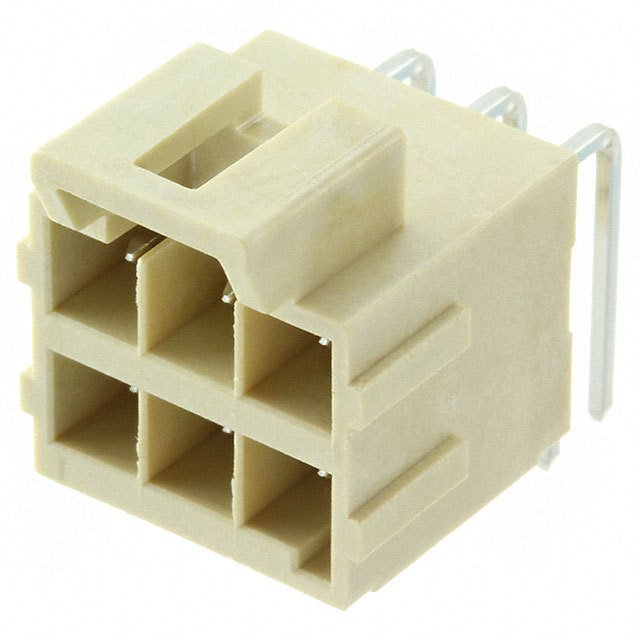

1723162106图片2
1723162106图片3
1723162106图片4
1723162106概述

Ultra-Fit Right Angle Header 3.5mm Pitch Dual Row 6Circuits Tin Plating Natural Glow Wire Compliant

Connector Header Through Hole, Right Angle 6 position 0.138" 3.50mm


得捷:
CONN HEADER R/A 6POS 3.5MM


艾睿:
Conn Power HDR 6 POS 3.5mm Solder RA Thru-Hole 6 Terminal 1 Port Ultra-Fit™ Tray


安富利:
Ultra-Fit Right Angle Header 3.5mm Pitch Dual Row 6 Circuits 1.524µm Tin Plating Glow Wire Capable Natural


Verical:
Conn Wire to Board HDR 6 POS 3.5mm Solder RA Thru-Hole Ultra-Fit™ Tray


1723162106中文资料参数规格
技术参数

触点数 6

排数 2

针脚数 6

拔插次数 25

额定电流Max 12A/触头

工作温度Max 120 ℃

工作温度Min -40 ℃

额定电压 400 V

接触电阻Max 2 mΩ

封装参数

安装方式 Through Hole

引脚数 6

外形尺寸

高度 13.56 mm

物理参数

外壳颜色 Natural

触点材质 Copper Alloy

工作温度 -40℃ ~ 105℃

其他

产品生命周期 Unknown

包装方式 Tray

制造应用 汽车,通用,工业,照明,医疗,军事,电信

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买1723162106
型号: 1723162106
制造商: Molex 莫仕
描述:Ultra-Fit Right Angle Header 3.5mm Pitch Dual Row 6Circuits Tin Plating Natural Glow Wire Compliant
