1718133004

Conn Wire to Board HDR 4POS 3.96mm Solder ST Thru-Hole KK® T/R

Connector Header Through Hole 4 position 0.156" 3.96mm

得捷:
CONN HEADER VERT 4POS 3.96MM

立创商城:
1718133004

艾睿:

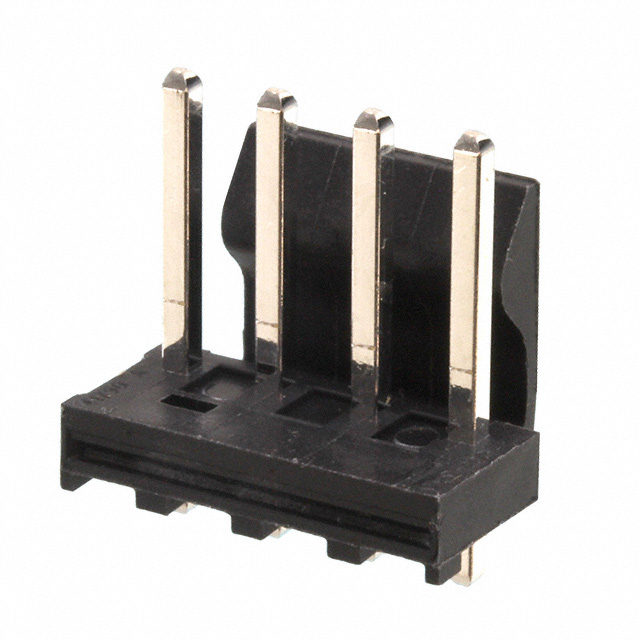

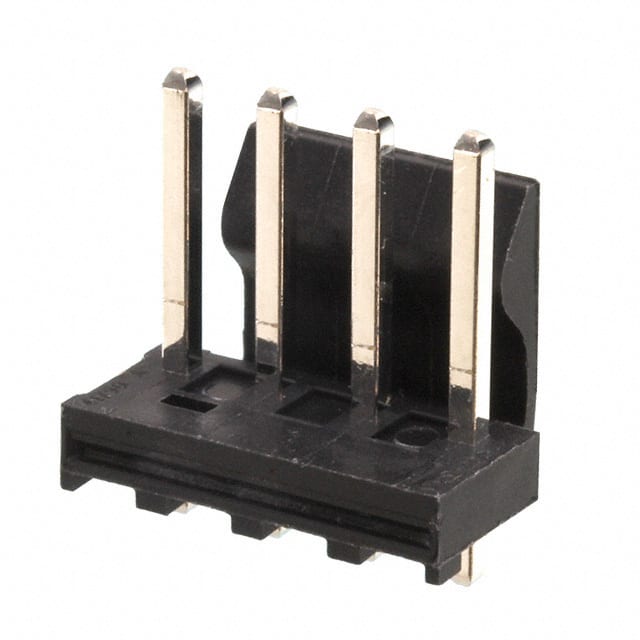

Look no further than the wire to board 1718133004 header connector from Molex, a great tool to use when board-to-board interconnects is required. This HDR connector&s;s 4 contacts that are made out of brass and plated with tin over nickel. It has a header type gender. It has a straight body orientation. Its pitch is 3.96 mm. It has a maximum voltage rating of 600 V. This is a 1-row connector. This device has a maximum current rating of 7 A/contact. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 15.7 mm long, 14.68 mm tall and 10.01 mm deep. 1718133004 is housed in black nylon. It uses the solder termination method. This connector has an operating temperature of -40 to 80 °C.

安富利:
Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole Embossed T/R

Verical:
Conn Wire to Board HDR 4 POS 3.96mm Solder ST Top Entry Thru-Hole KK® T/R

儒卓力:
**04 KK396 RPC WTB HEADER 180° **
