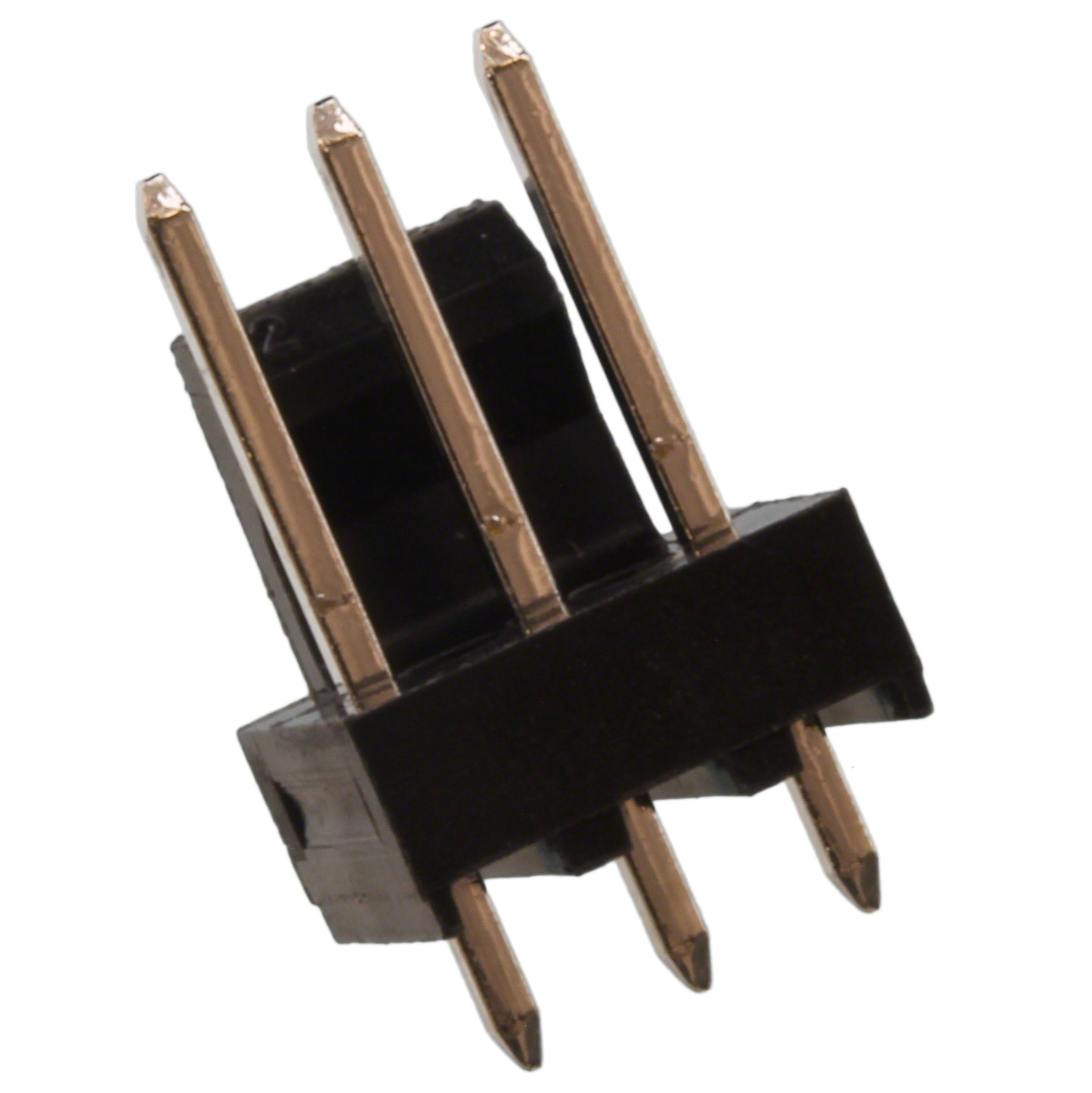

1718563003

Conn Wire to Board HDR 3POS 2.54mm Solder ST Thru-Hole T/R

Connector Header Through Hole 3 position 0.100" 2.54mm

得捷:
CONN HEADER VERT 3POS 2.54MM

艾睿:
Mount this wire to board 1718563003 header connector from Molex on a jumper post on your PCB to support physical configuration options. This HDR connector&s;s 3 contacts that are made out of brass and plated with tin over nickel. This is a 1-row connector. It has a maximum voltage rating of 250 V. It has a header type gender. It has a straight body orientation. Its pitch is 2.54 mm. This device has a maximum current rating of 4 A/contact. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It uses the solder termination method. This product is 7.47 mm long, 10.62 mm tall and 6.35 mm deep. 1718563003 is housed in black nylon. This connector has an operating temperature of -40 to 80 °C.

安富利:
Conn Wire to Board HDR 3 POS 2.54mm Solder ST Thru-Hole Embossed T/R

Verical:
Conn Wire to Board HDR 3 POS 2.54mm Solder ST Thru-Hole T/R

儒卓力:
**03 KK254 RPC WTB HEAD STRAIGHT **
