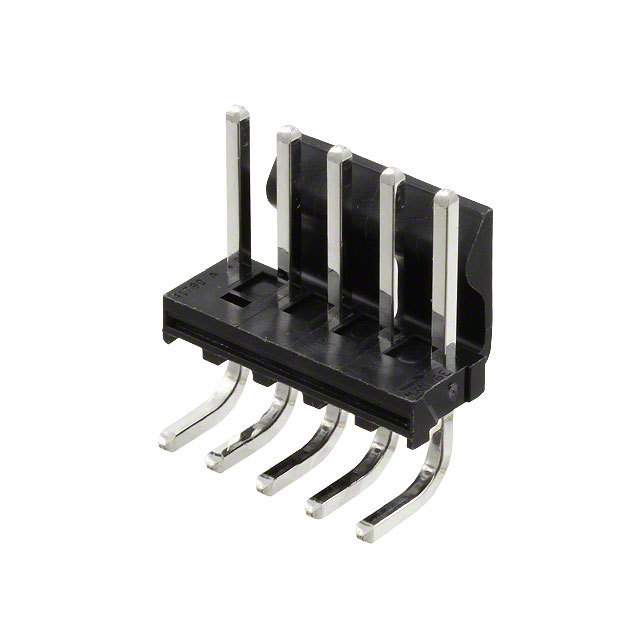

3.96mm Pitch, KK® 396 RPC Wire-to-Board Right-Angle Header with Friction Lock, Tin Sn Plating, Bag, 5Circuits
Connector Header Through Hole, Right Angle 5 position 0.156" 3.96mm
得捷:
CONN HEADER R/A 5POS 3.96MM
艾睿:
As an added safety precaution, the wire to board 1718140005 header connector from Molex will prevent and protect components on your circuit board from accidentally touching each other. This HDR connector&s;s 5 contacts that are made out of brass and plated with tin over nickel. It has a maximum voltage rating of 250 V. It has a header type gender. Its pitch is 3.96 mm. This is a 1-row connector. It has a right angle body orientation. This device has a maximum current rating of 7 A/contact. It uses the solder termination method. This connector has an operating temperature of -40 to 105 °C. This product is 19.66 mm long, 10.01 mm tall and 20.04 mm deep. 1718140005 is housed in black nylon.
Verical:
Conn Wire to Board HDR 5 POS 3.96mm Solder RA Thru-Hole KK® Bag
