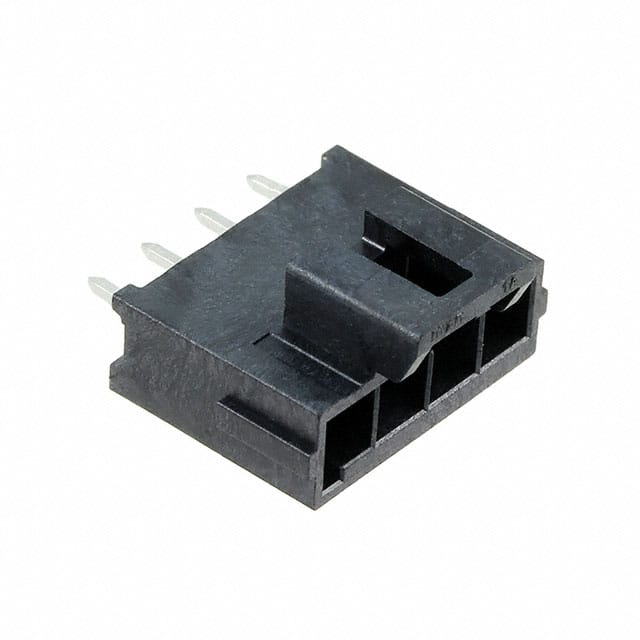

1722861204图片1
1722861204图片2
1722861204图片3
1722861204图片4
1722861204图片5
1722861204概述

Conn Power HDR 4POS 3.5mm Solder ST Thru-Hole 4 Terminal 1Port Ultra-Fit™ Tray

This power connector from comes in a variety of types to support AC or DC power entry modules. This HDR connector"s 4 contacts that are made out of copper alloy and plated with gold over nickel. Its pitch is 3.5 mm. It has a straight body orientation. This connector has a single port. It has a maximum voltage rating of 400 VDC|400VAC. It has a header type gender. This device has a maximum current rating of 12 A/contact. The item will be shipped in tray orientation. Its 4 terminals use the solder termination method. This power connector has a minimum operating temperature of -40 °C and a maximum of 120 °C.

1722861204中文资料参数规格
技术参数

触点数 4

极性 Male

触点电镀 Gold

排数 1

针脚数 4

拔插次数 200

额定电流Max 12A/触头

工作温度Max 120 ℃

工作温度Min -40 ℃

额定电压 400 V

封装参数

安装方式 Through Hole

外形尺寸

高度 14 mm

物理参数

外壳颜色 Black

触点材质 Copper Alloy

工作温度 -40℃ ~ 120℃

其他

产品生命周期 Unknown

包装方式 Tray

制造应用 汽车,通用,工业,照明,医疗,军事,电信

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买1722861204
型号: 1722861204
制造商: Molex 莫仕
描述:Conn Power HDR 4POS 3.5mm Solder ST Thru-Hole 4 Terminal 1Port Ultra-Fit™ Tray
