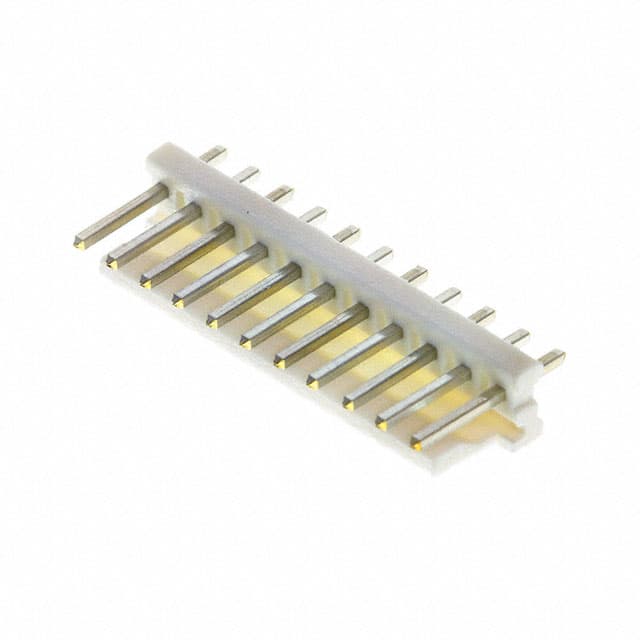

1-644752-1

Conn Wire to Board HDR 11POS 3.96mm Solder ST Thru-Hole

针座连接器 通孔 11 位置 0.156"（3.96mm）

得捷:
CONN HEADER VERT 11POS 3.96MM

艾睿:
Make strong and binding connections on your circuit boards by adopting this wire to board 1-644752-1 connector from TE Connectivity. This HDR connector&s;s 11 contacts that are made out of copper alloy and plated with tin. It has a header type gender. This is a 1-row connector. It has a straight body orientation. Its pitch is 3.96 mm. It has a maximum voltage rating of 600 VAC. This device has a maximum current rating of 7 A/contact. This product is 43.59 mm long, 13.33 mm tall and 7.62 mm deep. This connector has an operating temperature of -55 to 105 °C. 1-644752-1 is housed in natural polyester. It uses the solder termination method.

安富利:
Conn Wire to Board HDR 11 POS 3.96mm Solder ST Thru-Hole

Verical:
Conn Wire to Board HDR 11 POS 3.96mm Solder ST Thru-Hole Package

Online Components:
11P MTA156 HDR ASSY SQ STR F/L

Electro Sonic:
11P MTA156 HDR ASSY SQ STR F/L
