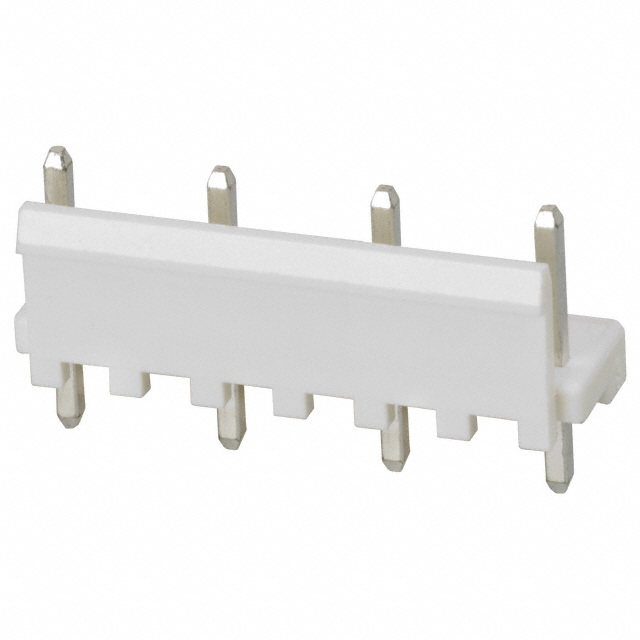

1-1318301-4

Conn Wire to Board HDR 4POS 7.92mm Solder ST Thru-Hole Tube

针座 通孔 7 位置 0.156"（3.96mm）

得捷:
CONN HEADER VERT 7POS 3.96MM

贸泽:
Headers & Wire Housings 4P EP PIN HDR

艾睿:

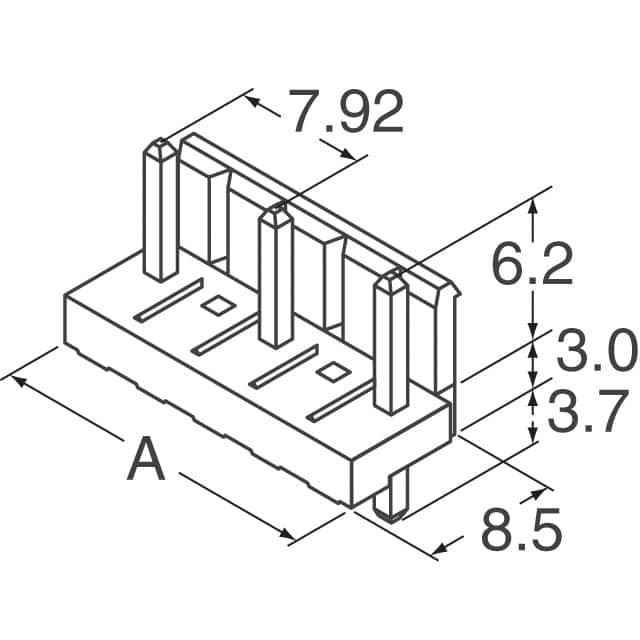

This wire to board 1-1318301-4 header connector from TE Connectivity reduces the possibility of accidentally shorting pins when a board is being used. This HDR connector&s;s 4 contacts that are made out of brass and plated with tin. It has a straight body orientation. It has a header type gender. Its pitch is 3.96 mm. This is a 1-row connector. It has a maximum voltage rating of 250 VAC. This device has a maximum current rating of 7.5 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 27.66 mm long, 10.3 mm tall and 8.5 mm deep. This connector has an operating temperature of -25 to 105 °C. 1-1318301-4 is housed in natural polybutylene terephthalate. It uses the solder termination method.

安富利:
Conn Wire to Board HDR 4 POS 7.92mm Solder ST Thru-Hole Tube

Chip1Stop:
Conn Wire to Board HDR 4 POS 7.92mm Solder ST Thru-Hole Tube

Verical:
Conn Wire to Board HDR 7 POS 3.96mm Solder ST Top Entry Thru-Hole Tube

MASTER:
Conn Wire to Board HDR 7 POS 3.96mm Solder ST Top Entry Thru-Hole Tube
