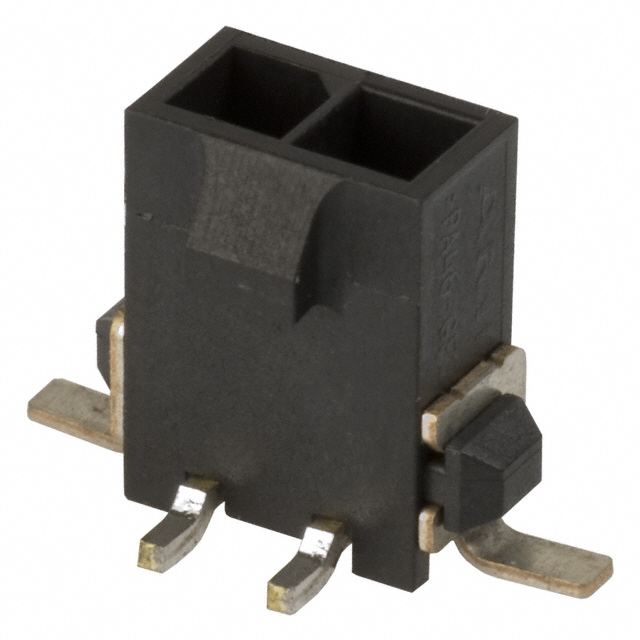

1445053-2

管脚和插座连接器 HDR VERT 2 POS TIN SINGLE ROW

Connector Header Surface Mount 2 position 0.118" 3.00mm

得捷:
CONN HEADER SMD 2POS 3MM

贸泽:
管脚和插座连接器 HDR VERT 2 POS TIN SINGLE ROW

艾睿:
Do you need to connect a power supply to a circuit? Then this 1445053-2 power connector from TE Connectivity is perfect for you! This HDR connector&s;s 2 contacts that are made out of brass and plated with tin-lead over nickel. Its pitch is 3 mm. It has a straight body orientation. This connector has a single port. It has a header type gender. It has a maximum voltage rating of 250 VAC. 1445053-2 is housed in nylon. This device has a maximum current rating of 5 A/contact. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its 2 terminals use the solder termination method. This power connector has an operating temperature range of -40 °C to 105 °C. This product is 5.67 mm deep.

Powell:
3mm Centerline, 250V, 5 A max.

Electro Sonic:
Conn Power HDR 2 POS 3mm Solder ST SMD 2 Terminal 1 Port
