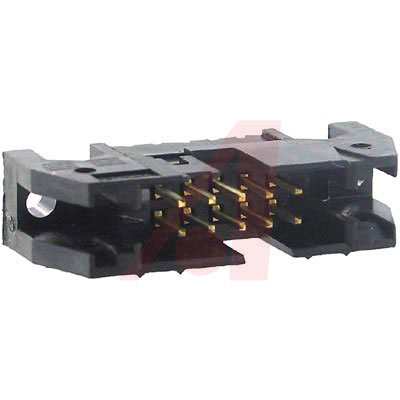

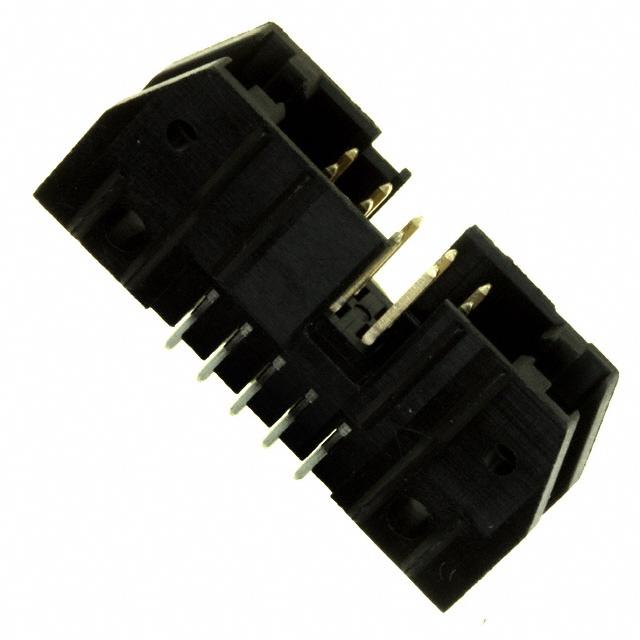

102154-1

集管和线壳 10P VERT HDR CTR POL

Universal Ejection Pin Header, Thermoplastic Housing, Black Color

Universal ejection pin header with thermoplastic housing.

得捷:
CONN HEADER VERT 10POS 2.54MM

贸泽:
集管和线壳 10P VERT HDR CTR POL

艾睿:
Support physical configuration options for jumper posts by mounting this ejector 102154-1 header connector from TE Connectivity. This HDR connector has 10 contacts that are plated with gold over nickel. It has a maximum voltage rating of 250 VAC. It has a header type gender. Its pitch is 2.54 mm. This is a 2-row connector. It has a straight body orientation. This device has a maximum current rating of 1 A/contact. This component comes in tray packaging, useful for fast picking and placing of your parts. It uses the solder termination method. This product is 32 mm long, 13.94 mm tall and 8.53 mm deep. 102154-1 is housed in black thermoplastic. This connector has an operating temperature of -65 to 105 °C.

Allied Electronics:
Header; Conn; Interconnect System; PCB Plug; 10 Cont; Solder; AMP-LATCH Series; Black

Verical:
Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tray

Newark:
# AMP - TE CONNECTIVITY  102154-1  010 UNIV HDR SP 4S 30DP STD New

MASTER:
HEADER ASSY, UNIVERSAL, AMP-LATCH

Powell:
AMP-LATCH Universal Headers

Online Components:
010 UNIV HDR SP 4S 30DP STD

Electro Sonic:
010 UNIV HDR SP 4S 30DP STD
