1934311-1

TE CONNECTIVITY  1934311-1  背板连接器, 针座, 40路

120 接头，公引脚 通孔 黑色 高速度

得捷:
CONN HEADER HD 120POS PCB

立创商城:
1934311-1

贸泽:
High Speed / Modular Connectors Tin Man Recept Assy 4 pair10 Column

e络盟:
背板连接器, 针座, 40路

艾睿:

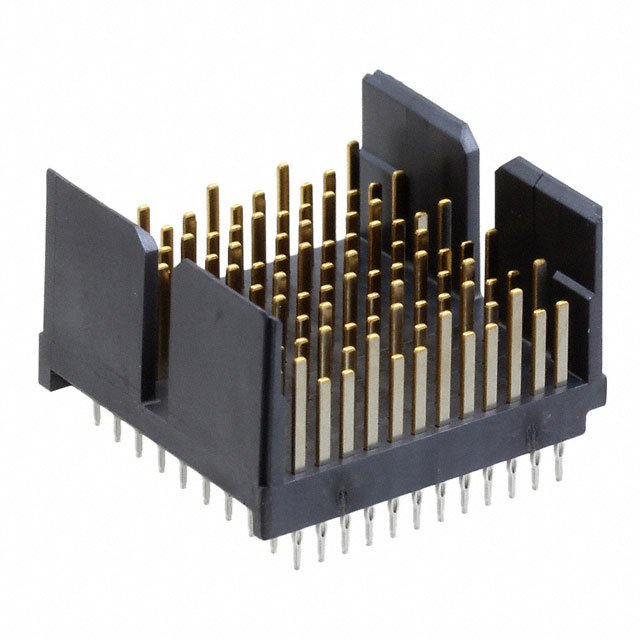

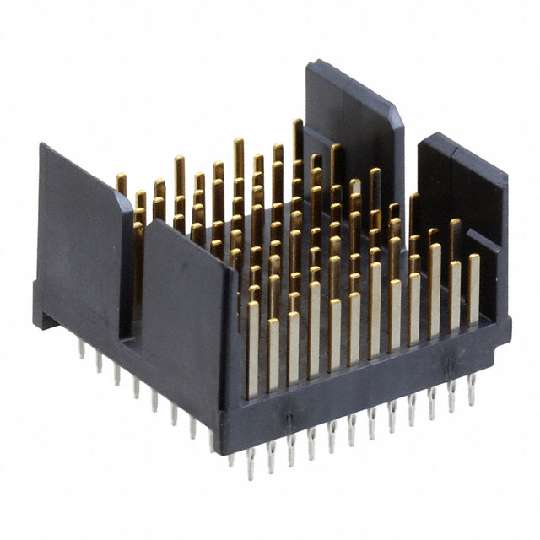

When you have numerous wires connected in parallel, then use this 1934311-1 backplane connector from TE Connectivity to make sure all the data flows through. This HDR connector&s;s 120 contacts that are made out of copper alloy and plated with gold over nickel. It has a straight body orientation. Its pitch is 1.9 mm. It has a maximum voltage rating of 250 VAC. This is a 12-row connector. It has a header type gender. This device has a maximum current rating of 0.5 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This backplane connector has an operating temperature of -65 to 90 °C. 1934311-1 is housed in black liquid crystal polymer. This product is 19.15 mm long, 11.8 mm tall and 20.2 mm deep. It uses the press fit termination method.

安富利:
Conn Backplane HDR 120 POS 1.9mm Press Fit ST Thru-Hole

Chip1Stop:
Conn Backplane HDR 120 POS 1.9mm Press Fit ST Thru-Hole Tube

Verical:
Conn Backplane HDR 120 POS 1.9mm Press Fit ST Thru-Hole Box/Tube

Newark:
# TE CONNECTIVITY  1934311-1  Connector, Z-PACK TinMan Series, Backplane, 40 Contacts, Header, 1.4 mm, Through Hole

MASTER:
HEADER ASSEMBLY, OPEN ENDED, 4 PAIR 10 COLUMN TinMan

Powell:
Hard Metric Connectors Tin Man Recept Assy 4 pair10 Column

Online Components:
Tin Man Header Assy4x10Open

Electro Sonic:
Tin Man Header Assy4x10Open
