1375582-4

集管和线壳 05 MTE VERTICAL SMT

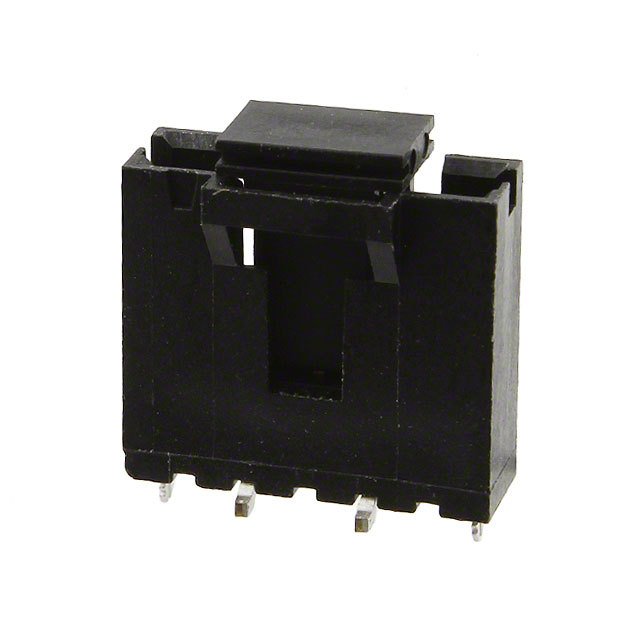

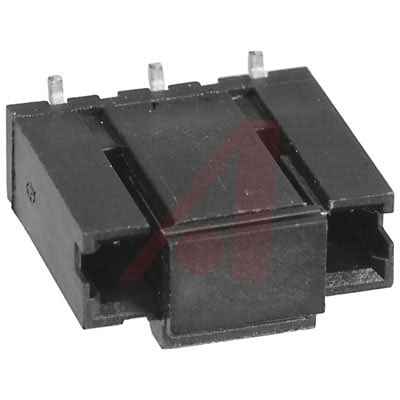

3 A , 600 V , Thermoplastic Housing, Single Row MTE IDC Header

** Material and Finish** : Housing — High temperature thermoplastic, Color — Black, 94V-0 rated.

** Posts** — Brass, plated as follows:

** Plating A** — Duplex plated 0.000030 0.00076 gold on contact area, 0.000100 0.00254 min. tin-lead on solder area, with entire post underplated 0.000050 0.00127 nickel. ** Plating B** — Duplex plated 0.000015 0.00038 gold on contact area, 0.000100 0.00254 min. tin-lead on solder area, with entire post underplated 0.000050 0.00127 nickel. ** Plating C** — 0.000100 0.00254 tin-lead over 0.000050 0.00127 nickel on entire contact/post.

Latched mating polarization, terminate to PCB.
