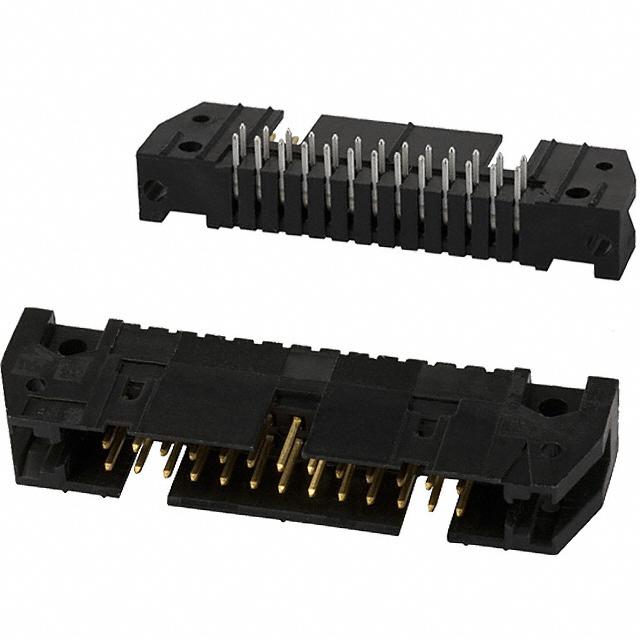

102159-6

Conn Ejector Header HDR 26POS 2.54mm Solder RA Thru-Hole

026 UNIV HDR RA 4S 15DP STD

Product Highlights

Connector Type = Universal Ejection Pin Headers

Standard Profile

Number of Positions = 26

2.54 x 2.54 mm Centerline, Matrix

PCB Mount Angle = Right Angle

得捷:
CONN HEADER R/A 26POS 2.54MM

艾睿:
Think of TE Connectivity&s;s ejector 102159-6 header connector the next time you&s;re concerned about accidentally shorting out pins on your printed circuit. This HDR connector&s;s 26 contacts that are made out of brass and plated with gold over palladium nickel|gold over nickel. This is a 2-row connector. It has a maximum voltage rating of 250 VAC. Its pitch is 2.54 mm. It has a header type gender. It has a right angle body orientation. This device has a maximum current rating of 1 A/contact. This component comes in tray packaging, useful for fast picking and placing of your parts. 102159-6 is housed in black nylon|polyester. This connector has an operating temperature of -65 to 105 °C. It uses the solder termination method. This product is 52.32 mm long, 8.53 mm tall and 13.94 mm deep.

Chip1Stop:
Conn Ejector Header HDR 26 POS 2.54mm Solder RA Thru-Hole

Verical:
Conn Ejector Header HDR 26 POS 2.54mm Solder RA Thru-Hole Tray

Newark:
# AMP - TE CONNECTIVITY  102159-6  026 UNIV HDR RA 4S 15DP STD New

MASTER:
HEADER ASSY, UNIVERSAL, AMP-LATCH

Powell:
Pin and Pinless Headers AMP-LATCH

Online Components:
026 UNIV HDR RA 4S 15DP STD

Electro Sonic:
026 UNIV HDR RA 4S 15DP STD
