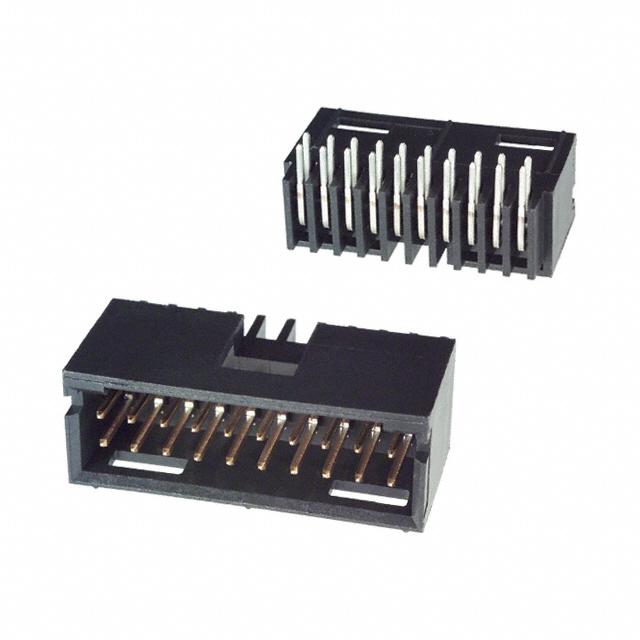

103166-8

Conn Shrouded Header HDR 20POS 2.54mm Solder RA Thru-Hole

20 MODII HDR DRRA SHRD .100CL

Product Highlights

Header

Header Type = Shrouded

Number of Rows = Dual

Number of Positions = 20

Mating Post Length = 8.08 mm

得捷:
CONN HEADER R/A 20POS 2.54MM

艾睿:
Mounting this shrouded 103166-8 header connector from TE Connectivity to your printed circuit board can help you support multiple physical configuration options. This HDR connector&s;s 20 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 2-row connector. Its pitch is 2.54 mm. It has a right angle body orientation. It has a header type gender. This device has a maximum current rating of 3 A/contact. The item will be shipped in tray orientation. This connector has an operating temperature of -55 to 105 °C. 103166-8 is housed in black thermoplastic. This product is 28.24 mm long, 10.49 mm tall and 16.23 mm deep. It uses the solder termination method.

Chip1Stop:
Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole

Verical:
Conn Shrouded Header 4 Sides HDR 20 POS 2.54mm Solder RA Thru-Hole Tray

Newark:
# AMP - TE CONNECTIVITY  103166-8  20 MODII HDR DRRA SHRD .100CL New

MASTER:
20 MODII HDR DRRA SHRD .100CL

Powell:
.100 inch AMPMODU Headers

Online Components:
20 MODII HDR DRRA SHRD .100CL

Electro Sonic:
20 MODII HDR DRRA SHRD .100CL
