1662256概述

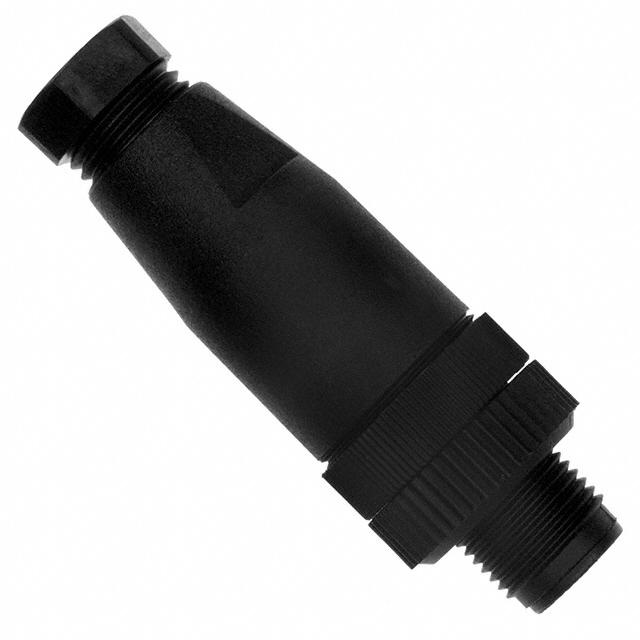

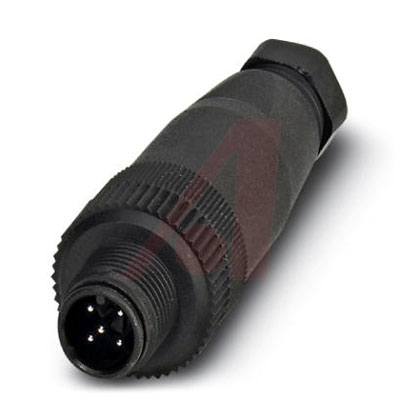

环形公制连接器 M12 PLG 5P PG7 BLK

Sensor/actuator connector, male, straight, 5-pos


得捷:
CONN PLUG MALE 5P SCREW


贸泽:
环形公制连接器 M12 PLG 5P PG7 BLK


艾睿:
Sensor/actuator flush-type plug, 17-pos. with shroud, A-coded, with straight THR solder connection, contact insert only


Allied Electronics:
Connector; Sensor/actuator; Male; Straight; 5 Pos; M12; Screw Conn; A-coded


Verical:
Interbus Loop 2 Output Module With One Analog Output Channel


MASTER:
Connector - Universal - 5-position - Plug straight M12 - A-coded - Screw connection - knurl material: Plastic - cable gland Pg7 - external cable diameter 4 mm ... 6 mm


Online Components:
Sensor/actuator connector, male, straight, 5-pos


Electro Sonic:
Connector - Universal - 5-position - Plug straight M12 - A-coded - Screw connection - knurl material: Plastic - cable ...


1662256中文资料参数规格
技术参数

触点数 5

极性 Male

触点电镀 Tin Alloy

额定电流 4 A

针脚数 5

额定电压 60 V

封装参数

安装方式 Through Hole

外形尺寸

长度 60 mm

物理参数

颜色 Black

触点材质 Copper Zinc

绝缘材质 Plastic

工作温度 -40℃ ~ 85℃

外壳材质 Plastic

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536694020

数据手册

在线购买1662256
型号: 1662256
描述:环形公制连接器 M12 PLG 5P PG7 BLK
