1-794075-1

管脚和插座连接器 HEADER 16 POS GOLD DUAL ROW

针座 通孔 16 位置 0.163"（4.14mm）

得捷:
CONN HEADER VERT 16POS 4.14MM

贸泽:
管脚和插座连接器 HEADER 16 POS GOLD DUAL ROW

艾睿:

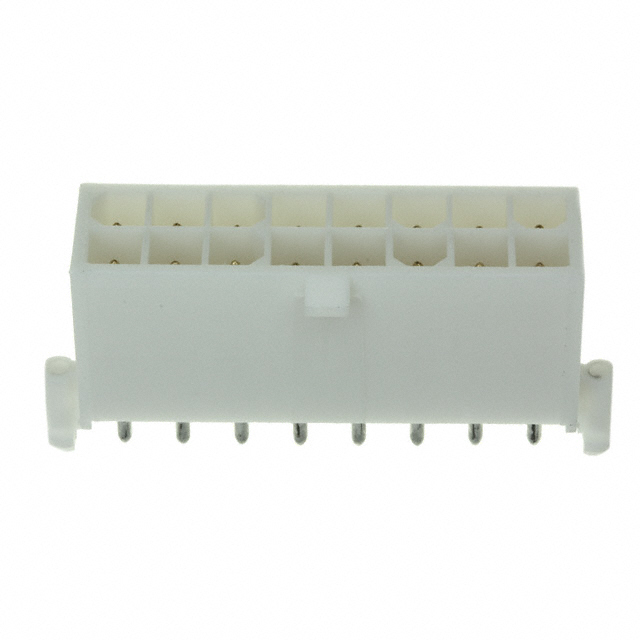

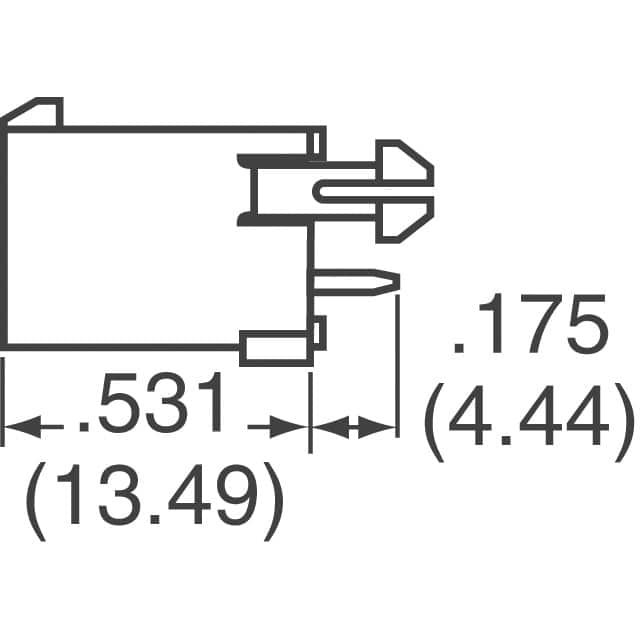

This robust 1-794075-1 power connector from TE Connectivity easily retains normal operation in harsh and stressful environments. This HDR connector&s;s 16 contacts that are made out of brass and plated with gold over nickel. It has a header type gender. Its pitch is 4.14 mm. It has a straight body orientation. This connector has a single port. It has a maximum voltage rating of 600 VAC. 1-794075-1 is housed in nylon. This device has a maximum current rating of 9.5 A/contact. Its 16 terminals use the solder termination method. This product is 39.83 mm long, 14.25 mm tall and 11.89 mm deep.

安富利:
Conn Power HDR 16 POS 4.14mm Solder ST Thru-Hole 16 Terminal 1 Port

Chip1Stop:
Conn Power HDR 16 POS 4.14mm Solder ST Thru-Hole 16 Terminal 1 Port Bag

Verical:
Conn Power HDR 16 POS 4.14mm Solder ST Thru-Hole 16 Terminal 1 Port Bag

MASTER:
HEADER ASSEMBLY, CLOSED BOTTOM, 16 CKT, DOUBLE ROW VERTICAL, MINI UNIVERSAL MATE-N-LOK

Powell:
.163" Centerline, 600 V, 9.5 A max.

Online Components:
16P MINI UMNL HDR W/O DH AU LF

Electro Sonic:
16P MINI UMNL HDR W/O DH AU LF
