1-179959-3

Dynamic 5200 系列管座TE Connectivity 动态系列的 D-4200 系列管座具有镀锡固定支脚，以提高稳定性。 D-4200 系列管座的印刷电路板焊接尾线为镀锡，触点插片为镀金。 这些 D-4200 系列管座的建议印刷电路板厚度为 1.6 至 2.4mm。### 注有关匹配的 D-5200 系列外壳，请参见典型库存号 680-1001。### TE Connectivity Dynamic 5000 系列

Dynamic 5200 系列管座

动态系列的 D-4200 系列管座具有镀锡固定支脚，以提高稳定性。 D-4200 系列管座的印刷电路板焊接尾线为镀锡，触点插片为镀金。 这些 D-4200 系列管座的建议印刷电路板厚度为 1.6 至 2.4mm。

### 注

有关匹配的 D-5200 系列外壳，请参见典型库存号 680-1001。

得捷:
CONN HEADER R/A 6POS 10.16MM

欧时:
### Dynamic 5200 系列管座TE Connectivity 动态系列的 D-4200 系列管座具有镀锡固定支脚，以提高稳定性。 D-4200 系列管座的印刷电路板焊接尾线为镀锡，触点插片为镀金。 这些 D-4200 系列管座的建议印刷电路板厚度为 1.6 至 2.4mm。### 注有关匹配的 D-5200 系列外壳，请参见典型库存号 680-1001。### TE Connectivity Dynamic 5000 系列

艾睿:

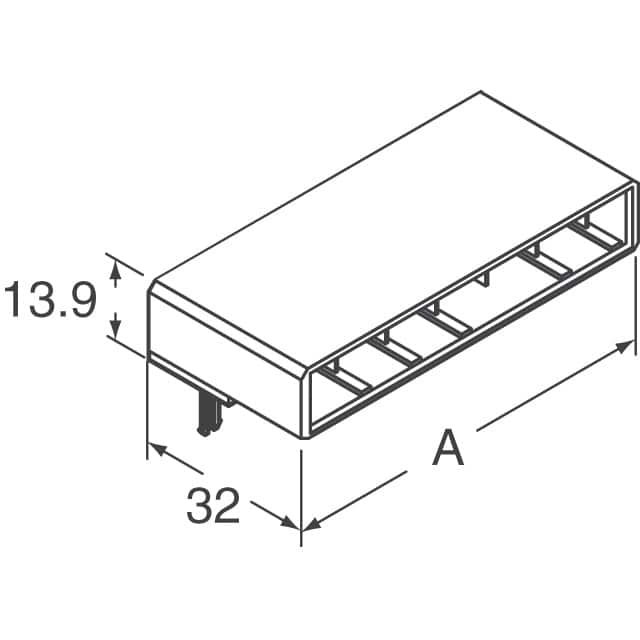

There won&s;t be any energy loss when you power up your circuit using the 1-179959-3 power connector from TE Connectivity. This M connector&s;s 6 contacts that are made out of copper alloy and plated with gold over nickel. Its pitch is 10.16 mm. It has a maximum voltage rating of 630 VAC. It has a male type gender. This connector has a single port. It has a right angle body orientation. 1-179959-3 is housed in polyester. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This power connector has a minimum operating temperature of -55 °C and a maximum of 105 °C. Its 6 terminals use the solder termination method. This product is 70 mm long, 32 mm tall and 12.4 mm deep.

Allied Electronics:
Header horiz 6 way TAB 10.16mm X key D-5

Powell:
Dynamic Series Connectors

Electro Sonic:
DYNAMIC D-5200 HDR ASSY 6P H X
