1827075

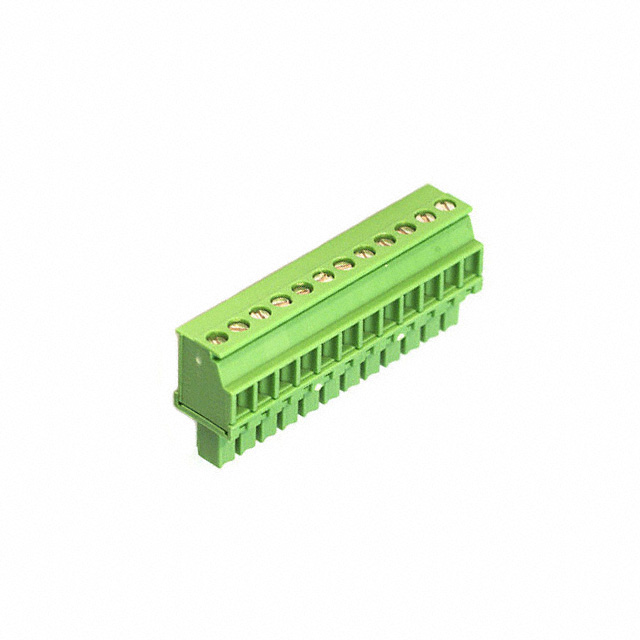

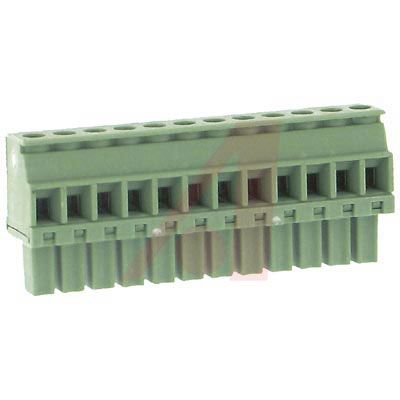

PHOENIX CONTACT  1827075  插拔式接线端子, 12 路, 160 V, 8 A, 3.81 mm, 28 AWG, 16 AWG

The MCVW series Printed-Circuit Board Connector with plug-in direction vertical to the conductor axis, connection point facing the rippled side of the header. It has individual position coding by removing the coding tab and connecting the coding profile to the header.

.

Generously dimensioned wiring space

得捷:
TERM BLOCK PLUG 12POS 3.81MM

e络盟:
插拔式接线端子, 3.81 mm, 12 路, 28AWG 至 16AWG, 1.5 mm², 螺丝, 8 A

艾睿:
Know that you will have strong connections between circuits when you use Phoenix Contact&s;s 1827075 PCB terminal block. This F connector has 12 contacts that are plated with tin. It has a maximum voltage rating of 160 V. It has a straight body orientation. It has a female type gender. This is a 1-row connector. Its pitch is 3.81 mm. 1827075 is housed in polyamide. This device has a maximum current rating of 8 A. Its wire is 16-28 AWG. This product is 46.51 mm long, 19.1 mm tall and 10.4 mm deep. It uses the screw termination method.

Allied Electronics:
Conn; Term Blk; Plug; Screw; 12; 3.81 mm; 30-14 AWG; 8 A; 300 V; PA; M2

Verical:
Conn Terminal Block F 12 POS 3.81mm Screw ST Cable Mount 8A

Newark:
# PHOENIX CONTACT  1827075  TERMINAL BLOCK, PLUGGABLE, 12POS, 16AWG

MASTER:
PCB connector - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - number of positions: 12 - pitch: 3.81 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin

Online Components:
Conn Terminal Block F 12 POS 3.81mm Screw ST Cable Mount 8A

Electro Sonic:
PCB connector - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
