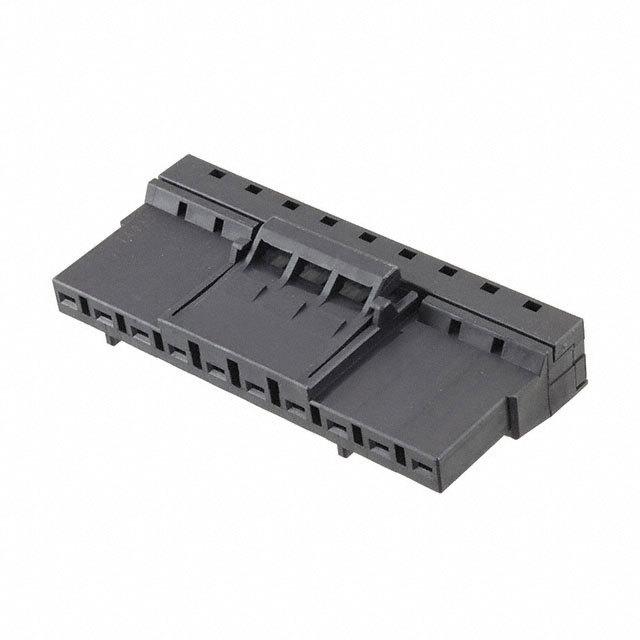

1-2134249-0

TE CONNECTIVITY  1-2134249-0  线至板连接器, Dynamic D-3900S系列, 10 触点, 插座, 7.5 mm, 弹簧笼　, 1 排

D3900 SPRING CLAMP REC 10P w/oSEAL-typeA

得捷:
CONN RCPT 10POS IDC GOLD

e络盟:
线至板连接器, Dynamic D-3900S系列, 10 触点, 插座, 7.5 mm, 弹簧笼　, 1 排

艾睿:
This specially engineered 1-2134249-0 power connector from TE Connectivity is designed for various high voltage and current supplies. This RCP connector&s;s 10 contacts that are made out of copper alloy and plated with gold over nickel. Its pitch is 7.5 mm. It has a right angle body orientation. This connector has a single port. It has a receptacle type gender. It has a maximum voltage rating of 600 VAC. This device has a maximum current rating of 15 A/contact. 1-2134249-0 is housed in polyester. This product is 75.7 mm long, 16.56 mm tall and 32.2 mm deep. Its 10 terminals use the crimp termination method. This power connector has an operating temperature range of -55 °C to 105 °C.

Verical:
Conn HSG RCP 10 POS 7.5mm Crimp RA Cable Mount 10 Terminal 1 Port Tray

Online Components:
D3900 SPRING CLAMP REC 10P w/oSEAL-typeA
