1554EGY

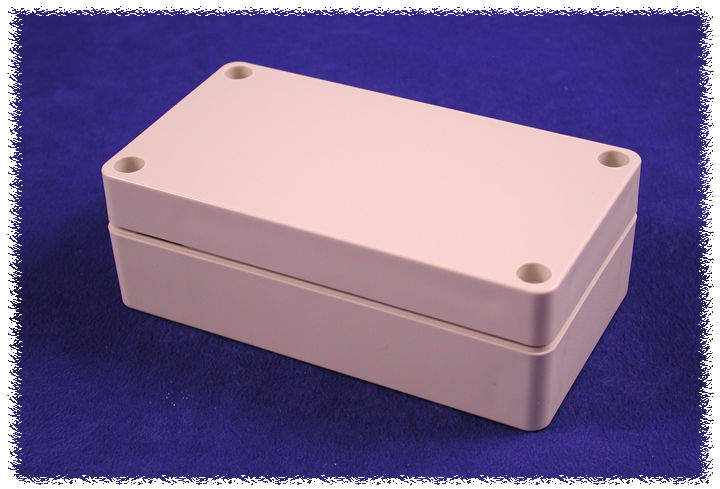

HAMMOND  1554EGY  非金属机壳, 防水, 平盖, 多用途, 90 mm, 90 mm, 60 mm, 丙烯腈-丁二烯-苯乙烯ABS, 灰色

* Ideally suited for mounting printed circuit boards or DIN rail mounted components

.

Manufactured from general purpose ABS plastic which carries a flammability rating of UL94 HB

.

Light grey in colour RAL7035

.

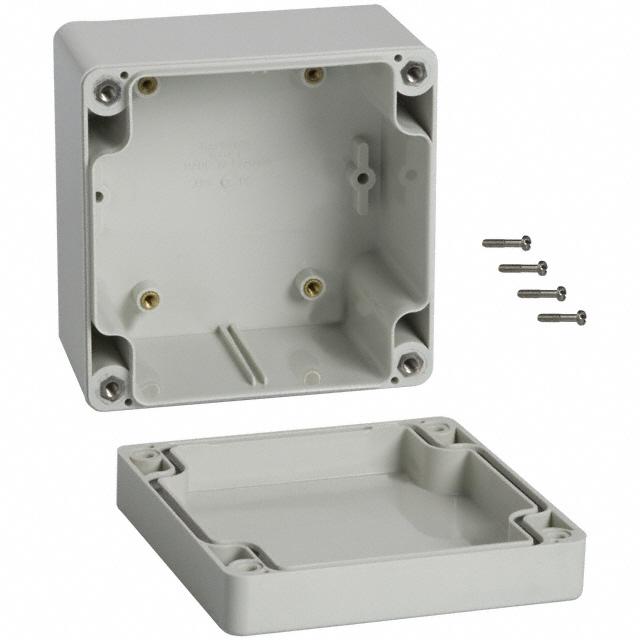

Gasketed lid with "tongue and groove" construction, protecting against access of oil, dust and water

.

Gasket is factory poured using high temperature UL listed silcon gasket material

.

Designed to meet IP66 and NEMA 4, 4X, 12 and 13 ratings

.

Lid secured with self captivating M4 stainless steel machine screws included

.

Lid screws threaded into integral stainless steel bushings

.

Threaded M3 internal brass inserts and/or standoffs designed for M3.5 or #6 self tapping screws

.

Vertical P.C. card guides are moulded

.

Internal DIN rail mounting tabs
