1598JBK

ABS 仪器盒 — 未屏蔽Hammond 1598 系列是台式电子仪器外壳，特别适用于安装印刷电路板 PCB。 采用耐火 ABS 塑料模制而成，这些外壳设计符合 IP54 保护，可防尘、防喷溅。 两套垂直 1.5mm PC 板导轴模制到盒子的前后半部分。 外壳还具有一体式水平 PC 卡，可安装在 Eurocard 中心。台式电子仪器外壳，特别适用于安装印刷电路板 模制印刷电路板支座，垂直卡导轨和黄铜衬套，可重复组装和拆卸 正向安装，凹槽结构 阻燃等级达 UL94V-0 凹入式抛光铝前面板和后面板 ### 塑料工具箱所有机箱均采用 ABS 塑料制造。

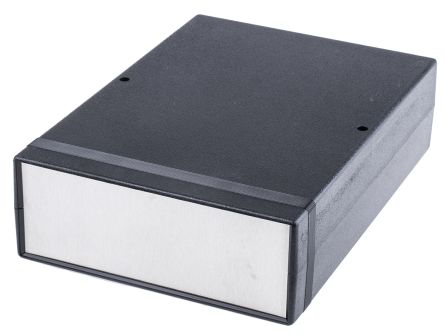

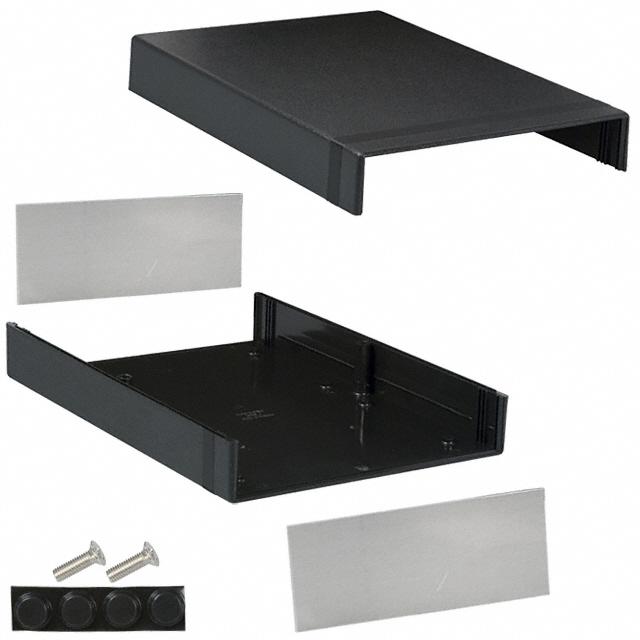

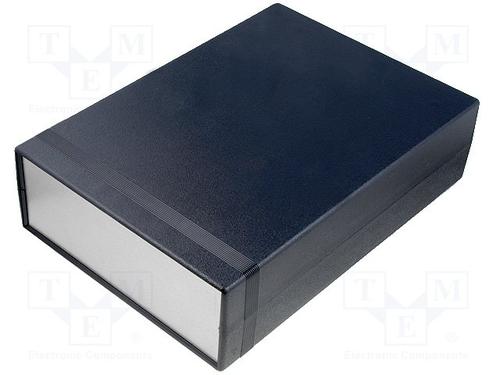

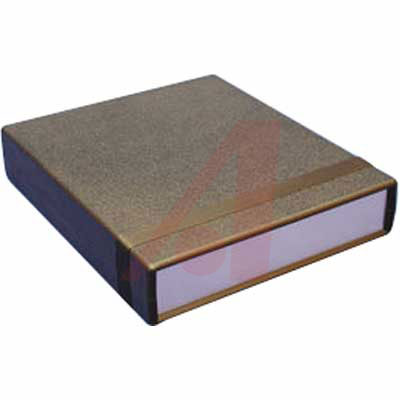

The is an Instrument Enclosure made of flame-retardant ABS acrylonitrile butadiene styrene with aluminium end panels. Front and rear panels are 1.6mm brushed aluminium with protective paper on one side. Cases halves are secured with M3 x 0.5-inch x 10mm Philips machine screws threaded into tapped integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required. It is used with desktop electronic instrument enclosure, ideally suited for mounting printed circuit boards.

.

Integral horizontal PC card mounts on Eurocard centres

.

IP54 Protection rating

.

Two sets of vertical 1.5mm PC board guides are moulded into case halves front and rear
