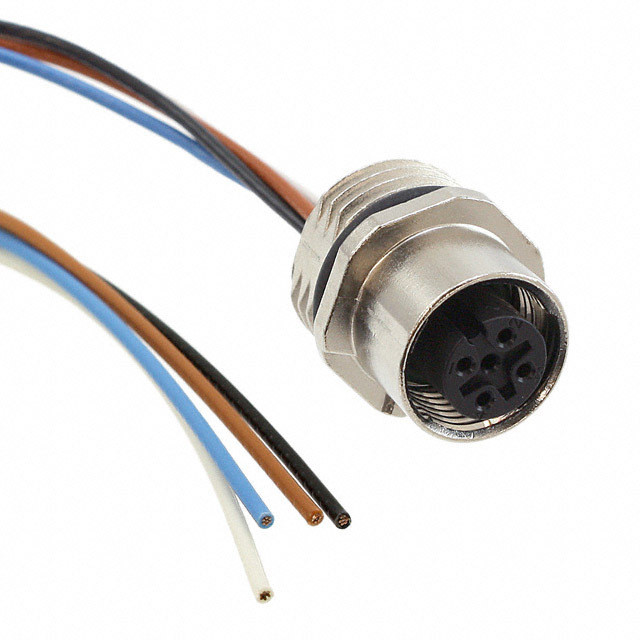

M12 SPEEDCON socketsPanel-mount M12 panel socket for sensors and actuators. SPEEDCON quick-locking system. Screw mounting on front face, M16 thread size. Contact insulated with polyamide 66. Nickel-plated zinc alloy body. Coloured wire lead connection 0.5 metre and cross-section 0.25 mm². SACC-E versions feature M16 flat thread for precise socket positioning. Phoenix reference guide --- **Phoenix ref.** | **Type** | **Stock no.** 1523434 | SACC-E-FS-4CON-M16/0.5 SCO | 652-8188 1523450 | SACC-E-MS-4CON-M16/0.5 SCO | 652-8217 1523447 | SACC-EC-FS-4CON-M16/0.5 SCO | 653-6066 1523463 | SACC-EC-MS-4CON-M16/0.5 SCO | 653-6072 1520039 | SACC-E-FS-5CON-M16/0.5 SCO | 652-8150 1520042 | SACC-EC-FS-5CON-M16/0.5 SCO | 653-8810 1520055 | SACC-E-MS-5CON-M16/0.5 SCO | 652-8166 1520068 | SACC-EC-MS-5CON-M16/0.5 SCO | 653-8955 1523476 | SACC-E-FS-8CON-M16/0.5 SCO | 652-8245 1523489 | SACC-EC-FS-8CON-M16/0.5 SCO | 653-9065 1523492 | SACC-E-MS-8CON-M16/0.5 SCO | 652-6441 1523502 | SACC-EC-MS-8CON-M16/0.5 SCO | 652-6479 ### Phoenix Contact SPEEDCONNEC 系列
This device has a maximum current rating of 4 A. This part has an operating temperature range of -25 to 85 °C. This has a Circular connector. It has a tpe cable. Its wire is 22 AWG.
得捷:
CBL 4POS FMALE TO WIRE 1.64"
欧时:
INDUSTRIAL CONNECTOR
艾睿:
Cable Assembly Litz Wire 0.5m 22AWG M12 Circular 4 POS F
Allied Electronics:
SENSOR/ACTUATOR FLUSH-TYPE SOCKET 4-POS.
Chip1Stop:
Cable Assembly TPE 0.5m 22AWG Circular 4 POS F
Verical:
Cable Assembly Litz Wire 0.5m 22AWG M12 Circular 4 POS F
MASTER:
Flush-type connector - Universal - 4-position - Socket - straight - M12-SPEEDCON - A-coded - Front mounting - M16 x 1.5 - Individual wires - cable length: 0.5 m - 0.34 mm² - TPE litz wire
Online Components:
Cable Assembly TPE 0.5m 22AWG Circular 4 POS F
Electro Sonic:
Flush-type connector - Universal - 4-position - Socket - straight - M12-SPEEDCON - A-coded - Front mounting - M16 ...
