1523476概述

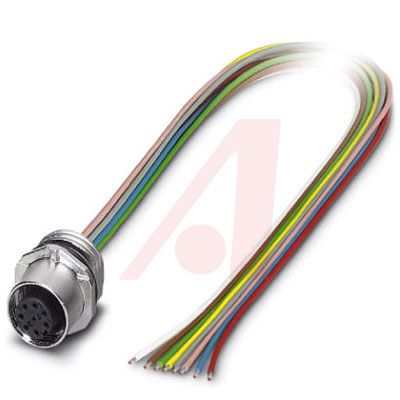

Cable Assembly TPE 0.5m 24AWG Circular 8POS F

Cable Assembly TPE 0.5m 24AWG Circular 8 POS F


得捷:
CBL 8POS FMALE TO WIRE 1.64"


欧时:
INDUSTRIAL CONNECTOR


艾睿:
Flush-type connector, Universal, 8-position, Socket, straight, M12-SPEEDCON, A-coded, Front mounting, M16 x 1.5, Individual wires, cable length: 0.5 m


Allied Electronics:
SENSOR/ACTUATOR FLUSH-TYPE SOCKET 8-POS.


Verical:
Flush-type connector, Universal, 8-position, Socket, straight, M12-SPEEDCON, A-coded, Front mounting, M16 x 1.5, Individual wires, cable length: 0.5 m


MASTER:
Flush-type connector - Universal - 8-position - Socket - straight - M12-SPEEDCON - A-coded - Front mounting - M16 x 1.5 - Individual wires - cable length: 0.5 m - 0.25 mm² - TPE litz wire


Online Components:
Cable Assembly TPE 0.5m 24AWG Circular 8 POS F


Electro Sonic:
Flush-type connector - Universal - 8-position - Socket - straight - M12-SPEEDCON - A-coded - Front mounting - M16 ...


1523476中文资料参数规格
技术参数

触点数 8

额定电流 2 A

额定电流Max 2 A

额定电压Max 30 V

额定电压 30 V

外形尺寸

长度 500.00 mm

电缆长度 0.5 m

物理参数

颜色 Multiple

触点材质 Brass

工作温度 -25℃ ~ 90℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8544429000

数据手册

在线购买1523476
型号: 1523476
描述:Cable Assembly TPE 0.5m 24AWG Circular 8POS F
