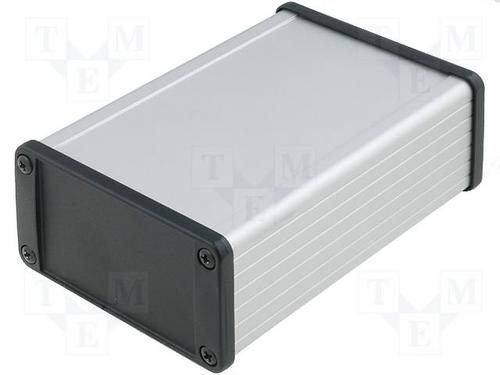

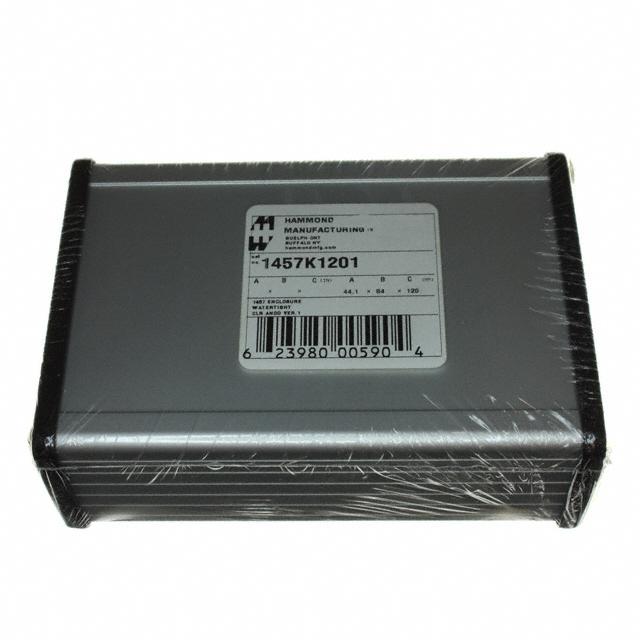

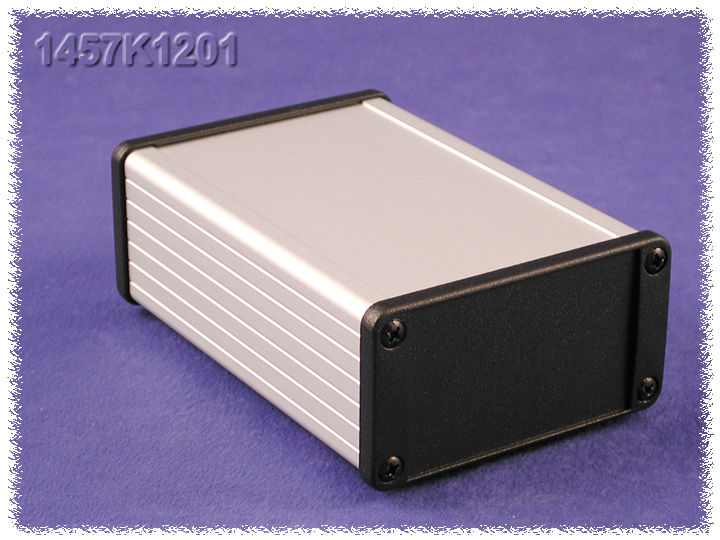

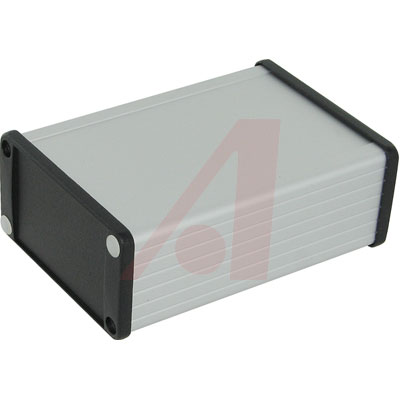

Enclosure: with panel; 1457; X:84mm; Y:120mm; Z:44mm; aluminium
**Key Features:**
* Watertight - heavy duty extruded enclosures designed to house P.C. boards or for equipment interfacing.
* Sized for standard Eurocards.
* P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body.
* Rugged body constructed from one piece, extruded aluminum with a minimum thickness of .06" 1.5 mm.
* Extruded aluminum body includes a recessed area for labels or membrane keypad.
* End panels are rugged - yet easy to machine - diecast aluminum with full perimeter self-adhesive gaskets.
* Designed to meet IP 65 ratings.
* Choice of two versions - end panels without flange or with flange for shelf or wall mounting.

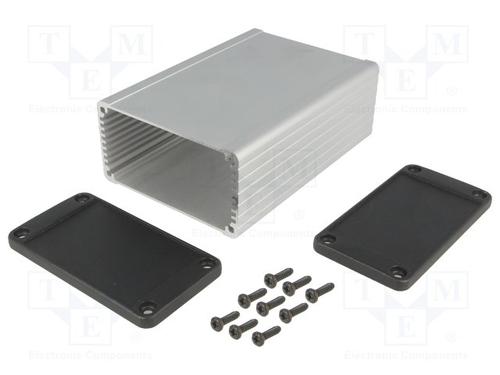

**Includes:**
* Two diecast aluminum end panels - painted in a durable, black satin powder paint.
* Extruded, aluminum body choice of either clear anodized or black powder paint finish.
* Two closed cell polyethylene foam - end plate gaskets & rubber "O" rings for assembly screws.
* All hardware and self-adhesive feet.
* NOTE: Recommended screw torque is 5 lbf/in
