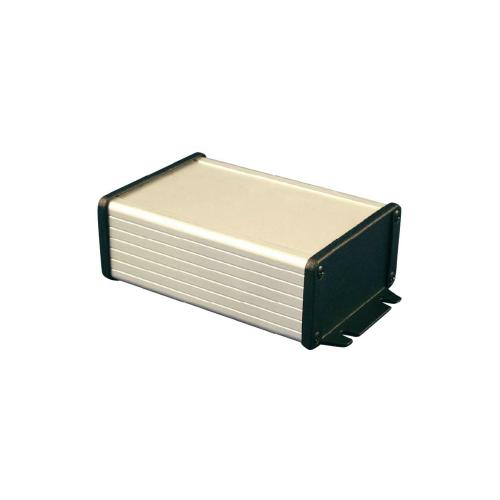

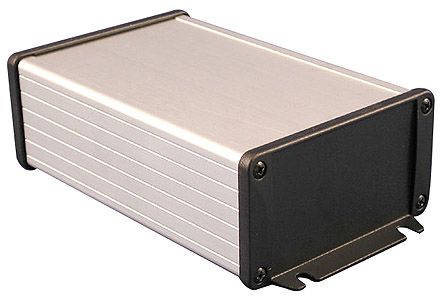

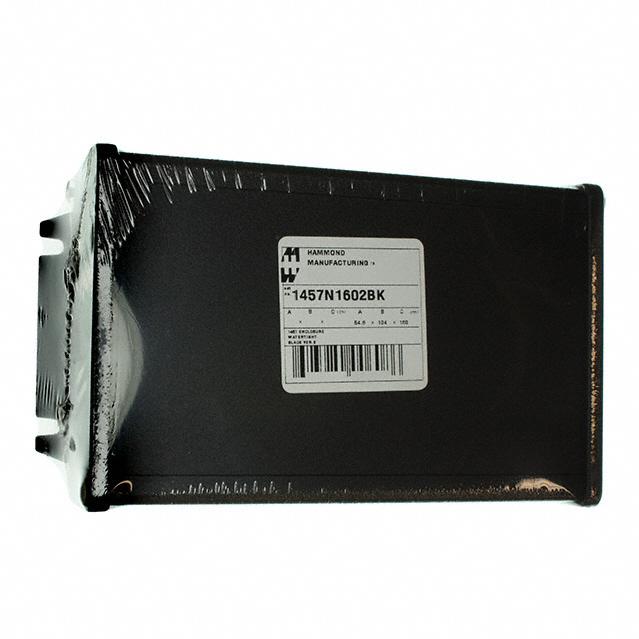

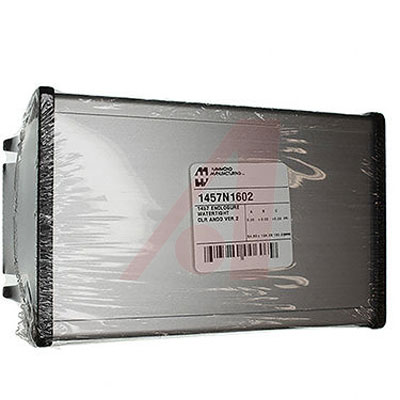

Hammond 1457 压延铝箱Hammond 1457 系列外壳具有压延铝主体和两个压铸铝端板，带一体式座圈。 这些外壳设计用于设备接口或盛装印刷电路板。### 特点和优势坚固主体由压延铝制成，最小厚度为 1.5 mm 适合标准 Eurocards 尺寸 通过滑入压入箱体的内部槽，可实现水平印刷电路板安装 压延主体包括凹陷区域，用于标签或薄膜键盘 黑色缎面粉漆端板 IP65 防护 ### 通用铝钢箱盒
**Key Features:**
* Watertight - heavy duty extruded enclosures designed to house P.C. boards or for equipment interfacing.
* Sized for standard Eurocards.
* P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body.
* Rugged body constructed from one piece, extruded aluminum with a minimum thickness of .06" 1.5 mm.
* Extruded aluminum body includes a recessed area for labels or membrane keypad.
* End panels are rugged - yet easy to machine - diecast aluminum with full perimeter self-adhesive gaskets.
* Designed to meet IP 65 ratings.
* Choice of two versions - end panels without flange or with flange for shelf or wall mounting.
**Includes:**
* Two diecast aluminum end panels - painted in a durable, black satin powder paint.
* Extruded, aluminum body choice of either clear anodized or black powder paint finish.
* Two closed cell polyethylene foam - end plate gaskets & rubber "O" rings for assembly screws.
* All hardware and self-adhesive feet.
* NOTE: Recommended screw torque is 5 lbf/in
