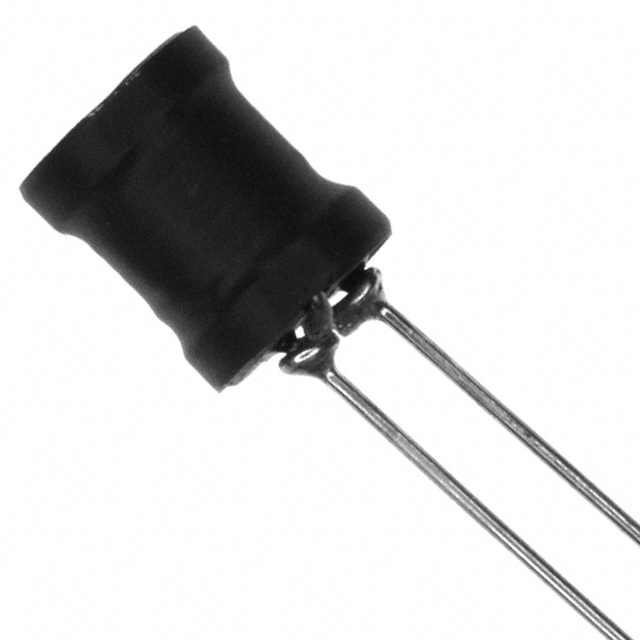

MURATA POWER SOLUTIONS 13R682C 电感, 6.8uH, 20% 3.5A 通孔安装 径向引线

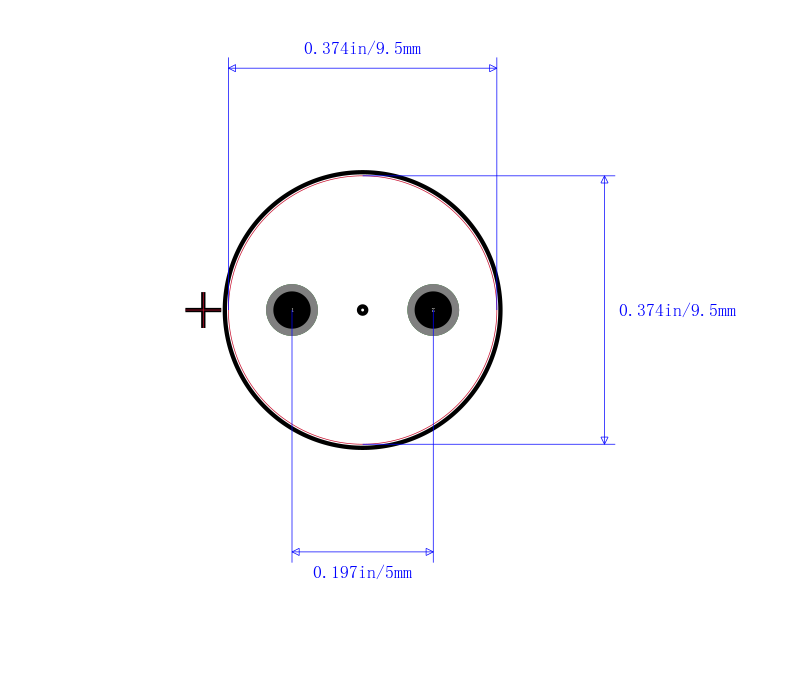

This general purpose leaded inductor from Murata Power Solutions is convenient and easily removable. This part has a pitch of 5 mm. This leaded inductor has an operating temperature range of -40 °C to 85 °C. This device utilizes wirewound technology. It has an inductance of 6.8u H. This leaded inductor has a maximum DC current of 3.5 A with a maximum resistance of 23m Ohm. Its test frequency is 1K Hz. This product is 13.5 mm tall with a diameter of 9.5 mm. It has a tolerance of 20%.
额定电流 3.5 A
容差 ±20 %
电感 6.8 µH
电感公差 ±20 %
测试频率 1 kHz
电阻DC） ≤23 mΩ
额定电流DC 3.5 A
工作温度Max 85 ℃
工作温度Min -40 ℃
电阻DC Max 0.023 Ω
安装方式 Through Hole
引脚数 2
高度 13.5 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
13R682C muRata 村田 | 当前型号 | 当前型号 |
MCSCH895-6R8MU Multicomp | 功能相似 | 13R682C和MCSCH895-6R8MU的区别 |
MCSCH664-6R8KU Multicomp | 功能相似 | 13R682C和MCSCH664-6R8KU的区别 |
