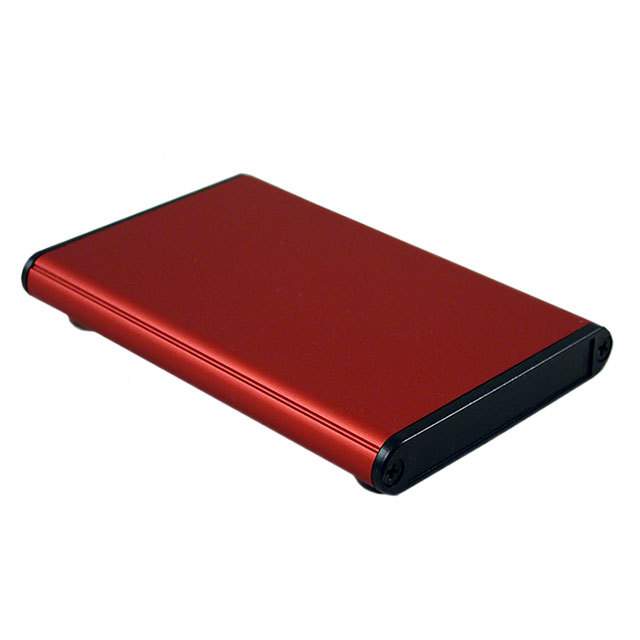

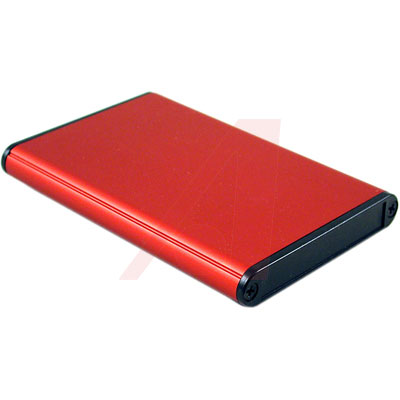

HAMMOND 1455A1002RD 机箱, 1455系列, 塑料端板挤压, 电路板盒, 12 mm, 70 mm, 101 mm, 铝, 红色
**Key Features:**
* Designed to house P.C. boards or for equipment interfacing.
* Sized for standard Eurocards.
* P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body.
* Easy to machine - one piece - front & back plastic end panels.
* Rugged body constructed from extruded aluminum with a minimum thickness of .06" 1.5 mm.
* Extruded aluminum body includes a slide removable "belly" plate - except in smaller "A", "B", "C" & "D" sizes
**Includes:**
* Two easy to machine, black solid ABS plastic end panels with integral bezel link here if you prefer our metal end panel version
* Extruded aluminum body - choice of either clear, black or in some models blue and red anodized finish "A" & "B" sizes
* All hardware - end panel screws are #6 x 3/8" TTT - thread rolling, steel screws with a #4 flat head phillips drive -with black zinc plate finish.
* For replacement screws quantity 100 order part number 1455MS100BK
* Self adhesive clear rubber feet. Replacements are available - order part number 1421T2CL pack of 24.
* NOTE: Recommended screw torque is 5 lbf/in
