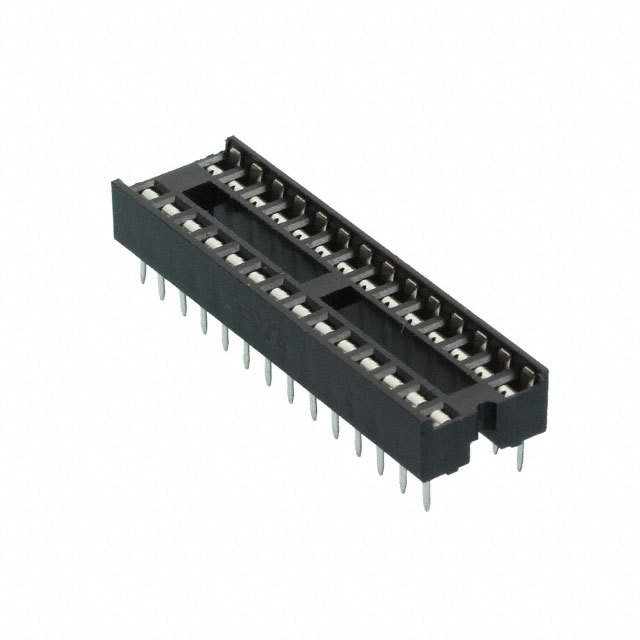

TE CONNECTIVITY 1-2199298-9 芯片和元件插座, DIP插座, 28 触点, 2.54 mm, 7.62 mm, 镀锡触芯
The is a 28-way through hole DIP Socket with 30% glass filled PBT, thermoplastic housing, tin/lead-plated brass/copper sleeve and tin-plated phosphor bronze contacts. Dual leaf mating contact, standard socket style and polarisation mating alignment type.
- .
- Vertical mounting angle
- .
- 20mR Contact resistance
- .
- 1000MR Insulation resistance
- .
- 250VAC/DC Voltage rating
- .
- 1A Current rating
- .
- 1000VAC Minimum dielectric withstanding voltage
- .
- -40 to 105°C Operating temperature range
触点数 28
触点电镀 Tin
额定电流 1A/触头
绝缘电阻 1000 MΩ
排数 2
易燃性等级 UL 94 V-0
针脚数 28
接触电阻 20 mΩ
额定电流Max 1A/触头
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压 250VDC, 250VAC
接触电阻Max 20 mΩ
安装方式 Through Hole
引脚数 28

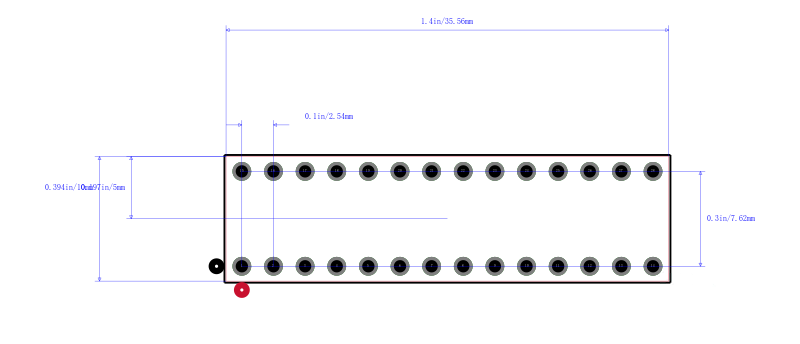

封装 PDIP
高度 5.1 mm
封装 PDIP
颜色 Black
触点材质 Phosphor Bronze
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tube
制造应用 Signal, 工业, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536694040
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
1-2199298-9 TE Connectivity 泰科 | 当前型号 | 当前型号 |
1-390261-9 泰科 | 功能相似 | 1-2199298-9和1-390261-9的区别 |
2227MC-28-03-05-F1 Multicomp | 功能相似 | 1-2199298-9和2227MC-28-03-05-F1的区别 |
MC-2227-28-03-F1 Multicomp | 功能相似 | 1-2199298-9和MC-2227-28-03-F1的区别 |
