1453478概述

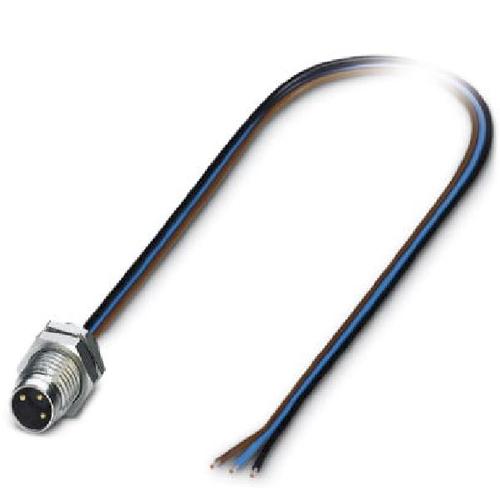

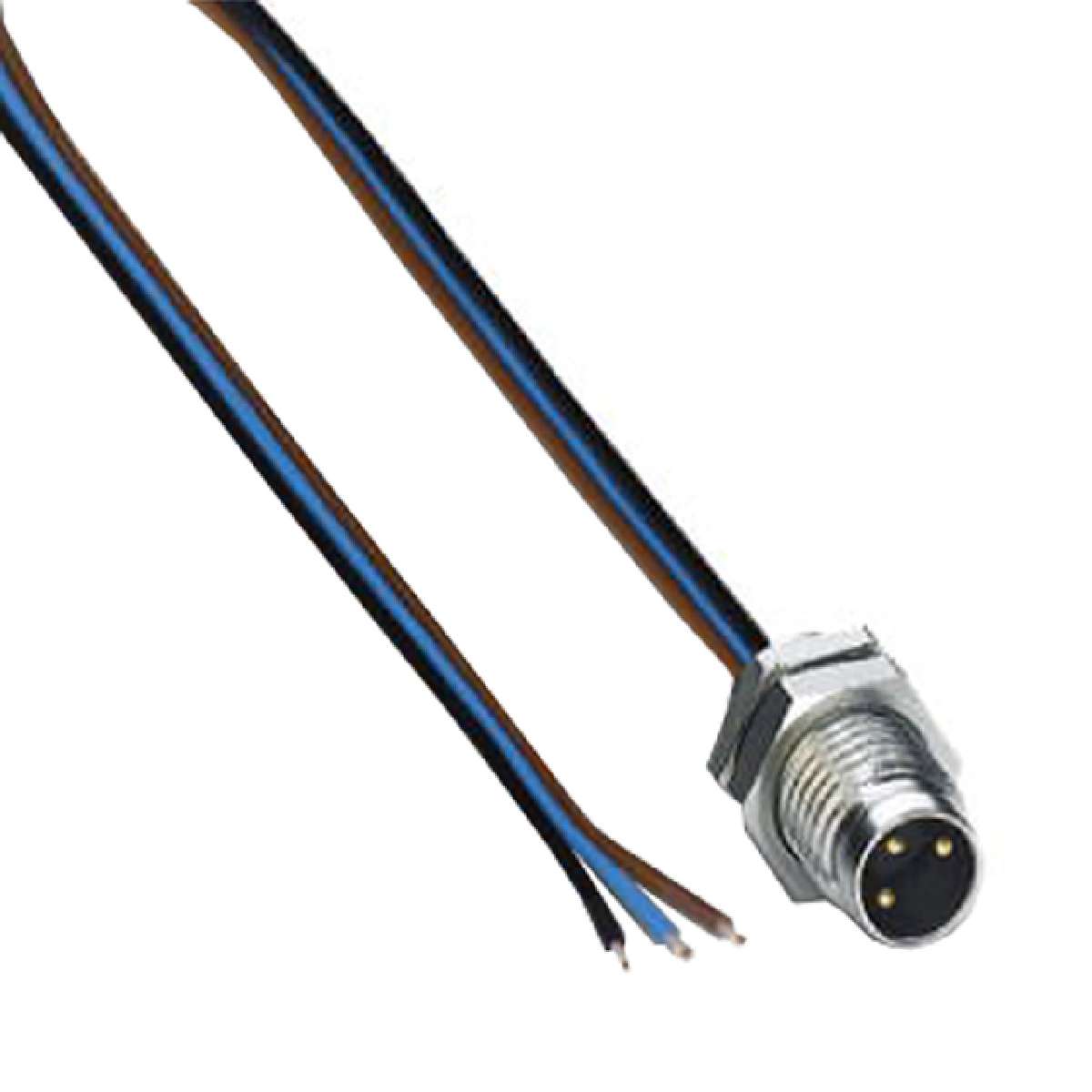

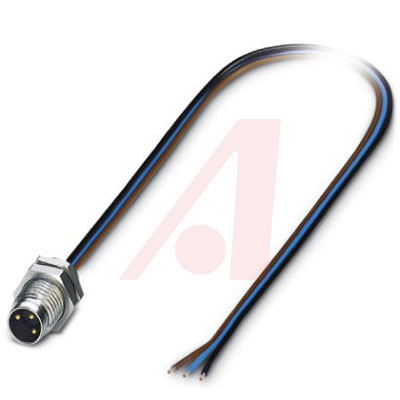

Phoenix Contact 电缆总成, 连接器 A: M8 M8 插头

缆线组件 1.64"(500.00mm)


得捷:
CBL 3POS MALE TO WIRE 1.64"


欧时:
Sensor/Actuator,DSI-M 8MS-3W-M 8/0,5


艾睿:
Cable Assembly Sensor/Actuator 0.5m 24AWG Circular 3 POS M


Allied Electronics:
Cable assembly with a 3 Pole M8 and an Unterminated End


Verical:
Cable Assembly Litz Wire 0.5m 24AWG M8 Circular 3 POS M


MASTER:
Flush-type connector - 3-position - Plug - straight - M8 - Rear mounting - M8 x 1 - Individual wires - cable length: 0.5 m - 0.25 mm² - PVC litz wire


Online Components:
Cable Assembly Sensor/Actuator 0.5m 24AWG Circular 3 POS M


Electro Sonic:
Flush-type connector - 3-position - Plug - straight - M8 - Rear mounting - M8 x 1 - Individual ...


1453478中文资料参数规格
技术参数

触点数 3

极性 Male

额定电流Max 4 A

外形尺寸

电缆长度 0.5 m

物理参数

触点材质 Copper Alloy

工作温度 -25℃ ~ 90℃

其他

产品生命周期 Active

包装方式 Bulk

制造应用 工业环境

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536694020
