1515057

1515057图片1
1515057图片2
1515057图片3
1515057图片4
1515057图片5
1515057图片6
1515057概述

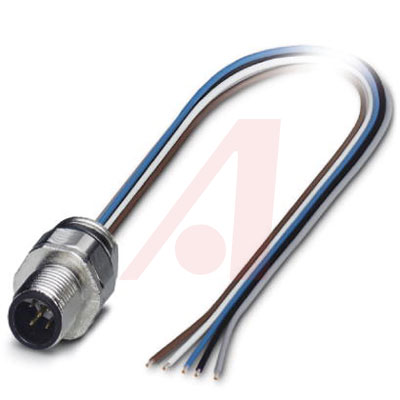

Phoenix Contact 1515057系列 5路 螺钉 直向 连接器 插座, 插头触点, 快速连接接合

缆线组件 1.64"(500.00mm)


欧时:
Sensor/Actuator flush-type plug, 5W


得捷:
CBL 5POS MALE TO WIRE 1.64"


贸泽:
环形公制连接器 SACC-EC-M12MSB- 5CON-PG9/0.5


艾睿:
Cable Assembly Sensor/Actuator 0.5m 22AWG Circular 5 POS M


Allied Electronics:
1515057 Series, 5 Pole Screw Conn Socket, Male Contacts, Quick Connect Mating, IP67


MASTER:
Sensor/Actuator flush-type plug - 5-pos. - M12 - B-coded - front/screw mounting with Pg9 thread - can be positioned - with 0.5 m TPE litz wire - 5 x 0.34 mm²


Online Components:
Cable Assembly Sensor/Actuator 0.5m 22AWG Circular 5 POS M


Electro Sonic:
Sensor/Actuator flush-type plug - 5-pos. - M12 - B-coded - front/screw mounting with Pg9 thread - can be positioned - ...


1515057中文资料参数规格
技术参数

触点数 5

额定电流Max 4 A

额定电压Max 60 V

外形尺寸

电缆长度 0.5 m

物理参数

工作温度 -25℃ ~ 85℃

其他

产品生命周期 Active

制造应用 工业环境, 工業環境

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8544429000

数据手册

在线购买1515057
型号: 1515057
描述:Phoenix Contact 1515057系列 5路 螺钉 直向 连接器 插座, 插头触点, 快速连接接合
