1604KL-04W-B50-B00

NMB TECHNOLOGIES  1604KL-04W-B50-B00  轴流风扇, 管轴式, 方形, 滚珠, 1604KL系列, 12 VDC, 40 mm, 10 mm, 6 cu.ft/min, 0.17 m³/min

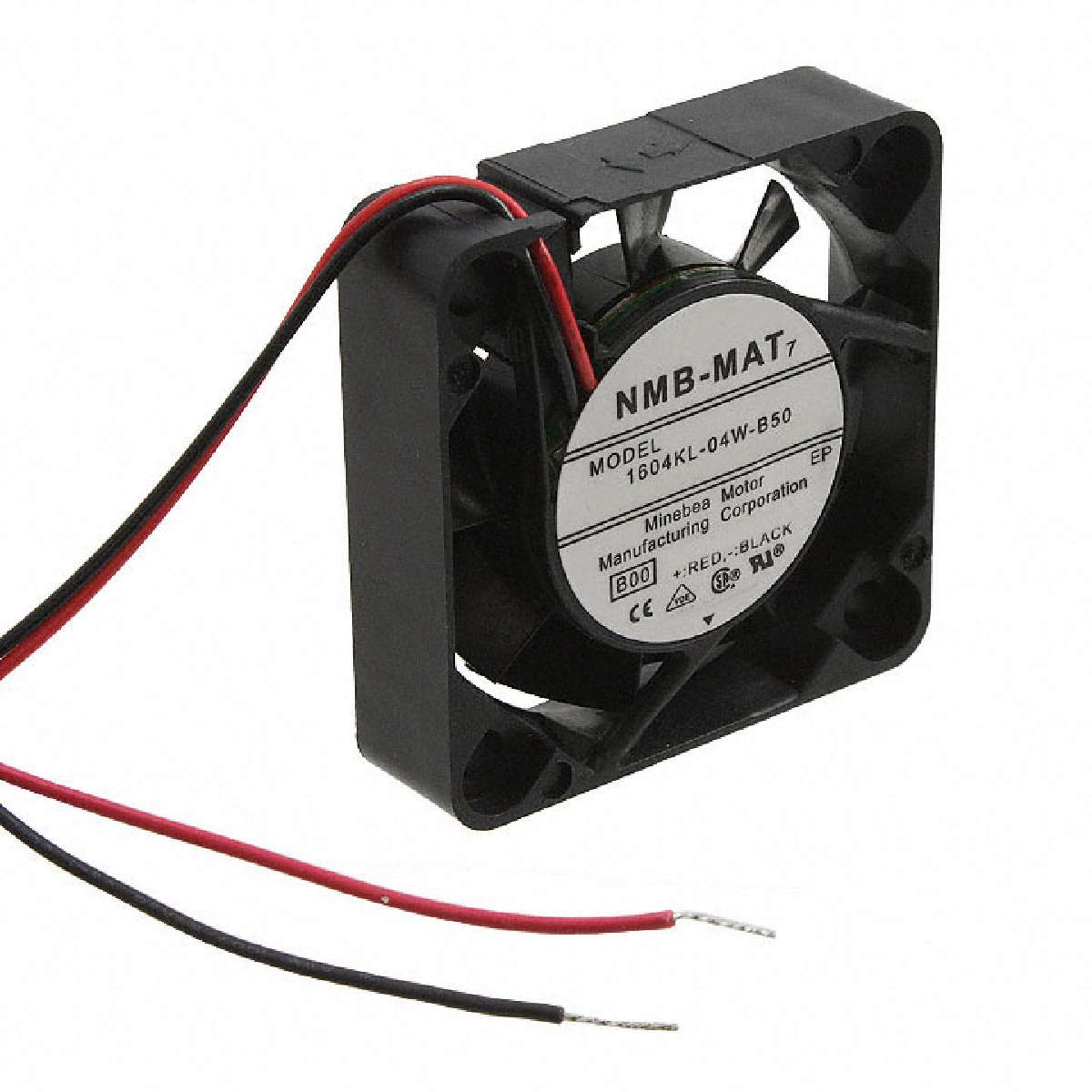

The is a 12VDC Axial Fan with ball bearing and wire leaded power connection. This K-series axial fan comes with plastic black casing and impeller. UL1061, 26AWG red + and black - lead wire. Clockwise direction of rotation, air out over struts. Brushless type DCM motor function, standard special control function and standard model ribbed mounting. Can be an integral part of a cooling solution for heat-generating purpose.

.

UL94V-0 Flammability rating

.

6500RPM Speed rating

.

-10 to 70°C Operating temperature range

.

0.876W Rated power

.

0.184"-H2O Static pressure

.

10MR or over with a DC500V Megger insulation resistance

.

Auto restart

.

Polarity protection
