Conn Ejector Header HDR 16POS 2mm Solder ST Thru-Hole

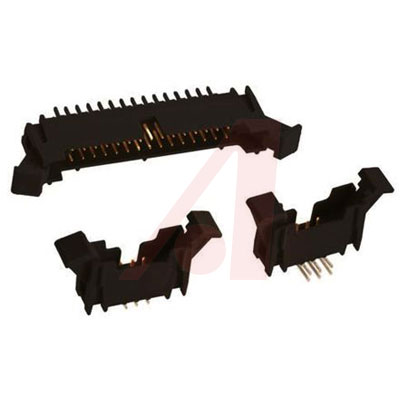

**2.0mm Headers 1552 Series**
These 1552 Series Latch/Eject Headers are suitable to high vibration applications due to the retention of the latches by roll pins. The wiping area of the contacts of the 1552 Series Latch/Eject Headers are 0.76 μm gold over nickel with the 2.84 mm long solder tails being tin plated.
得捷:
CONN HEADER VERT 16POS 2MM
贸泽:
Headers & Wire Housings 16P STRT MOLD LATCH .112" TAIL LENGTH
艾睿:
Conn Ejector Header HDR 16 POS 2mm Solder ST Thru-Hole Box
Allied Electronics:
1552 Series, 2mm Pitch 16 Way 2 Row Straight Header, Solder Termination, 1.25A
安富利:
Conn Ejector Header HDR 16 POS 2mm Solder ST Thru-Hole
触点数 16
极性 Male
触点电镀 Gold
额定电流 1 A
绝缘电阻 1000 MΩ
排数 2
易燃性等级 UL 94 V-0
针脚数 16
额定电流Max 1.25 A
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压Max 1000 V
安装方式 Through Hole
引脚间距 2.00 mm
高度 15.1 mm
引脚间距 2.00 mm
外壳颜色 Black
颜色 Black
触点材质 Copper Alloy
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
