1053354-1

PCB安装 不锈钢 直 插孔 SMA 射频 连接器

SMA 插孔，母形插口 50 欧姆 通孔 焊接

得捷:
CONN SMA JACK STR 50 OHM PCB

e络盟:

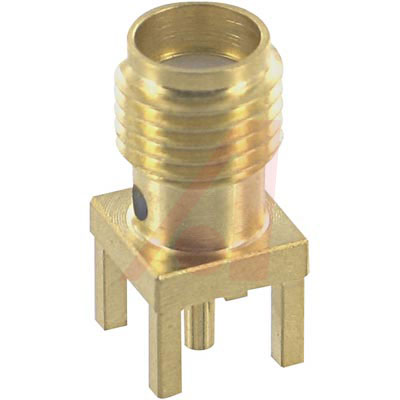

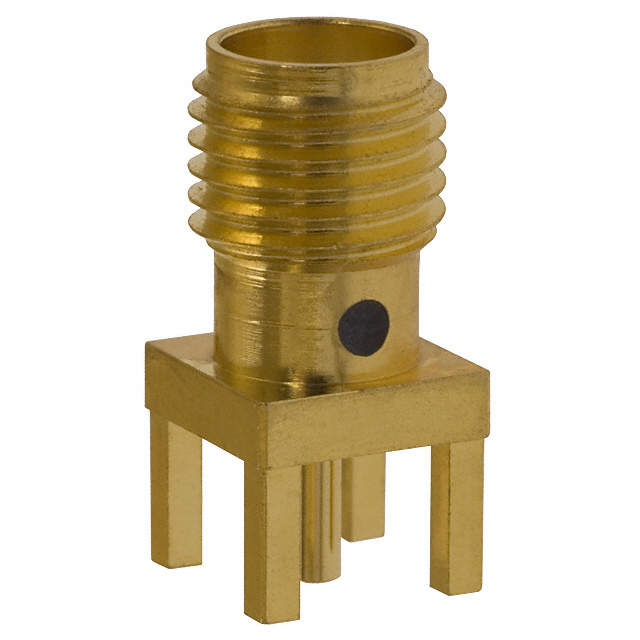

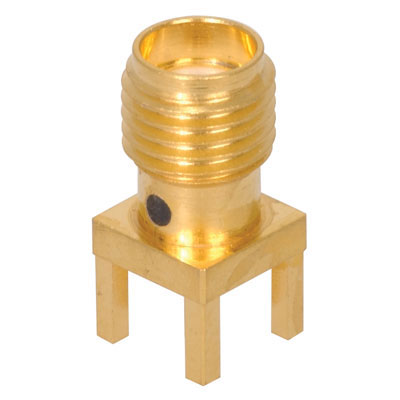

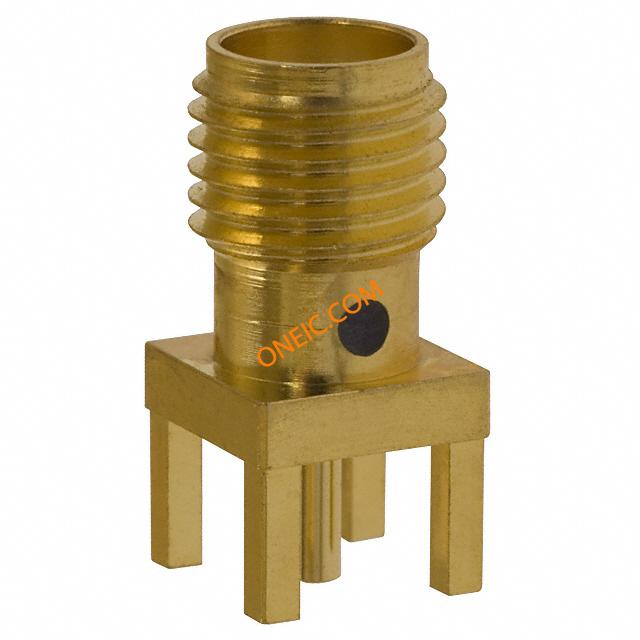

The 1053354-1 is a SMA PC board mount Vertical Jack with gold-plated beryllium copper contacts, gold-plated stainless steel straight body and PTFE. The SMA connector is designed for performance to 18GHz to satisfy the growing demand for SMA connectors in the wireless communications industry. The SMA product line offers stainless steel bodies, as well as nonferrous metals. The SMA interface is fully compatible with Mil-C-39012.

艾睿:
A low impedance means lower resistance levels for easier data transfer, this sma 1053354-1 RF connector from TE Connectivity will do just that while giving you protection. This connector&s;s body is plated in gold. It has a receptacle type gender. It has a straight body orientation. This product is 6.3 mm long, 9.5 mm tall and 6.3 mm deep. It uses the solder termination method.

Allied Electronics:
Connector; Jack; SMA; Printed Circuit Board; Straight; Stainless Steel; 50 Ohms

Jameco:
Connector SMA Female Solder Straight Thru-Hole Gold

安富利:
Conn SMA RCP Solder ST Thru-Hole Gold

Chip1Stop:
Conn SMA RCP Solder ST Thru-Hole Gold

Verical:
Conn SMA 0Hz to 18GHz 50Ohm Solder ST Thru-Hole F Gold Bag

Newark:
# TE CONNECTIVITY  1053354-1  RF / Coaxial Connector, SMA Coaxial, Straight Jack, Through Hole Vertical, 50 ohm, Beryllium Copper

MASTER:
RF / Coaxial Connector - SMA Coaxial - Straight Jack - Through Hole Vertical - 50 ohm - Beryllium Copper.

Online Components:
ASSEMBLY, JACK SMA

Electro Sonic:
RF / Coaxial Connector - SMA Coaxial - Straight Jack - Through Hole Vertical - 50 ohm - Beryllium Copper.
