MARQUARDT 1835.3118 翘板开关, 发光, 发光, DPST, 关-开, 绿色, 面板, 20 A

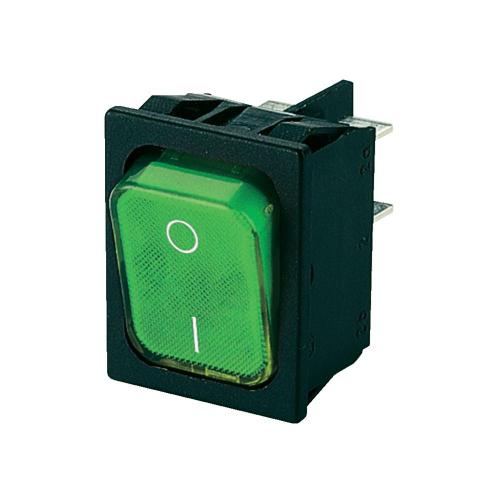

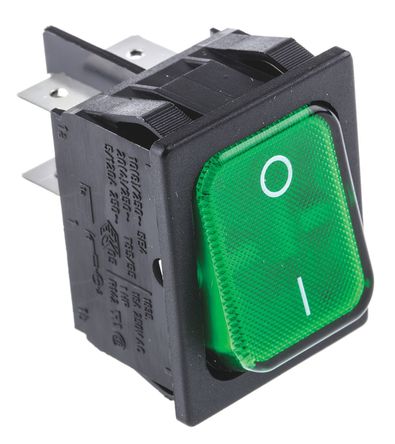

The is a double-pole single-throw DPST illuminated Rocker Switch with 6.3mm quick-connect terminal and ON/OFF function. The 1830 series switch has Ag plated contact, silver plated external/bearing connection and black PA housing. The rocker actuator is made of transparent green PC.
- .
- 230V Green glow lamp function lighting
- .
- >=3 Contact distance
- .
- * IP40 Protection rating
绝缘电阻 100 MΩ
排数 2
触点类型 DPST
接触电阻 100 mΩ
额定电流Max 20A @250VAC
额定功率Max 745.7 VA
额定电压 250 VAC
额定电压AC Max 250 V
安装方式 Panel
长度 31.5 mm
高度 35.9 mm
颜色 Black
触点材质 Silver
产品生命周期 Active
包装方式 Tray
制造应用 工业, Lighting, 照明, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
1835.3118 Marquardt | 当前型号 | 当前型号 |
18353118 Marquardt | 完全替代 | 1835.3118和18353118的区别 |
MC37920-021-1104 Multicomp | 功能相似 | 1835.3118和MC37920-021-1104的区别 |
