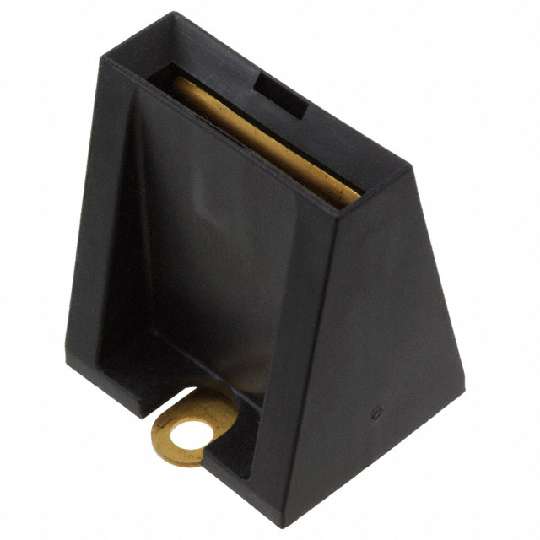

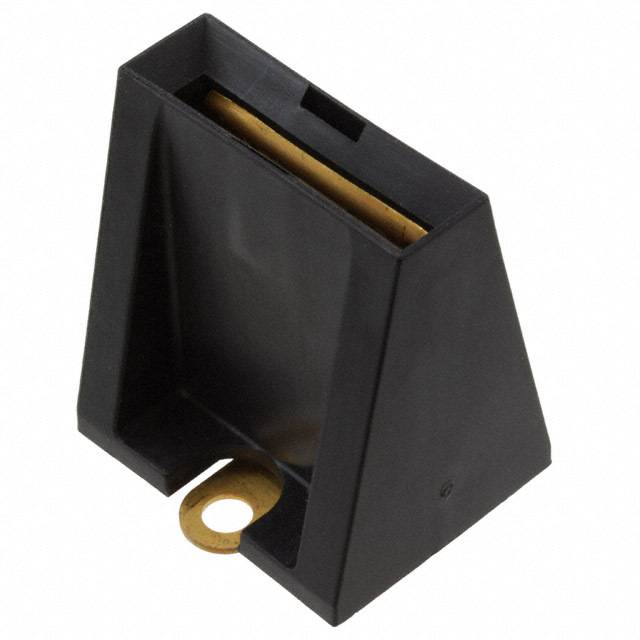

TE CONNECTIVITY / ELCON 1643906-1 总线柱形插槽
538-17-00100 399-01 7
Product Highlights
Socket
Number of Poles = 1
Mount Type = Float
得捷:
CONN TERM BUSBAR CLIP SOLDER
e络盟:
总线柱形插槽
艾睿:
This specially engineered bus bar connector 1643906-1 power connector from TE Connectivity is designed for various high voltage and current supplies. This RCP connector&s;s a single contact that is made out of beryllium copper and plated with gold over nickel. It has a maximum voltage rating of 48VDC|600 VAC. This connector has a single port. It has a straight body orientation. It has a receptacle type gender. This device has a maximum current rating of 300 A/contact. 1643906-1 is housed in thermoplastic. This power connector has a minimum operating temperature of -40 °C and a maximum of 105 °C. It has 1 terminal. This product is 35.56 mm long, 31.75 mm tall and 25.4 mm deep.
安富利:
Conn Bus Bar Connector RCP 1 POS ST Panel Mount 1 Terminal 1 Port Box
Chip1Stop:
Conn Bus Bar Connector RCP 1 POS ST Panel Mount 1 Terminal 1 Port Box
Verical:
Conn Busbar Connector RCP 1 POS ST Panel Mount 1 Terminal 1 Port Box/Carton
Newark:
# ELCON - TE CONNECTIVITY 1643906-1 Rectangular Connector, Crown Clip Series, 1 Contacts, Receptacle, Surface Mount, 1 Row
MASTER:
CONNECTOR, CROWN CLIP SINGLE POLE APPLICATION
Powell:
Pluggable Bus Bar Connectors & Sockets
Online Components:
538-17-00100 399-01 7
Electro Sonic:
Crown Clip Senior 538-17-00100 399-01 7
触点数 1
极性 Female
触点电镀 Gold over Nickel
额定电流 300 A
排数 1
方向 Vertical
易燃性等级 UL 94 V-0
额定电流Max 300A/触头
工作温度Max 105 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
封装 -
长度 31.75 mm
宽度 25.4 mm
高度 31.75 mm
封装 -
外壳颜色 Black
颜色 Black
触点材质 Beryllium Copper
工作温度 -40℃ ~ 105℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Bulk
制造应用 Power
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694030
