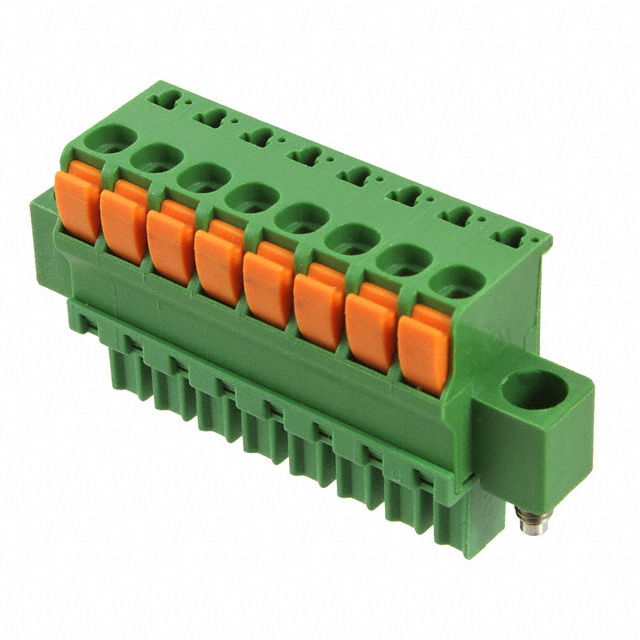

TE CONNECTIVITY 1986726-8 接线端子块, 插入式, 8路, 30-14AWG
Str Plug Spring Type LH, FL, 8P, 3.81
得捷:
TERM BLOCK PLUG 8POS STR 3.81MM
贸泽:
可插拔接线端子 3.81MM L/HAND 8 POS STR SPRNG PLG W/FLNG
e络盟:
接线端子块, 插入式, 8路, 30-14AWG
艾睿:
Easily mend a cutoff point in a circuit by using this 1986726-8 PCB terminal block from TE Connectivity. This F connector&s;s 8 contacts that are made out of copper alloy/steel. It has a straight body orientation. This is a 1-row connector. It has a female type gender. It has a maximum voltage rating of 300 VAC. Its pitch is 3.81 mm. 1986726-8 is housed in polyamide. This device has a maximum current rating of 11 A/contact. This quick disconnect terminal has an operating temperature of -40 to 110 °C. This product is 40.87 mm long, 11.65 mm tall and 20.75 mm deep. Its wire is 14-30 AWG.
安富利:
Conn Terminal Block PL 8 POS 3.81mm ST Panel Mount
Verical:
Conn Terminal Block F 8 POS 3.81mm ST Cable Mount 11A/Contact
Newark:
# TE CONNECTIVITY 1986726-8 Pluggable Terminal Block, 3.81 mm, 8 Positions, 30 AWG, 14 AWG, 2 mm², Push In
MASTER:
Str Plug Spring Type LH, FL, 8P, 3.81
Online Components:
Str Plug Spring Type LH, FL, 8P, 3.81
Electro Sonic:
Str Plug Spring Type LH, FL, 8P, 3.81
触点数 8
线规 14AWG ~ 30AWG
触点电镀 Tin, Tin over Copper
额定电流 11 A
绝缘电阻 1000 MΩ
排数 1
电路数 8
针脚数 8
额定电流Max 11A/触头
工作温度Max 110 ℃
工作温度Min -40 ℃
额定电压Max 300 VAC
额定电压 300 V
工作电压Max 300 VAC
高度 11.65 mm
外壳颜色 Green
颜色 Green
触点材质 Copper Alloy
工作温度 -40℃ ~ 110℃
外壳材质 Nylon
产品生命周期 Obsolete
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536908010
