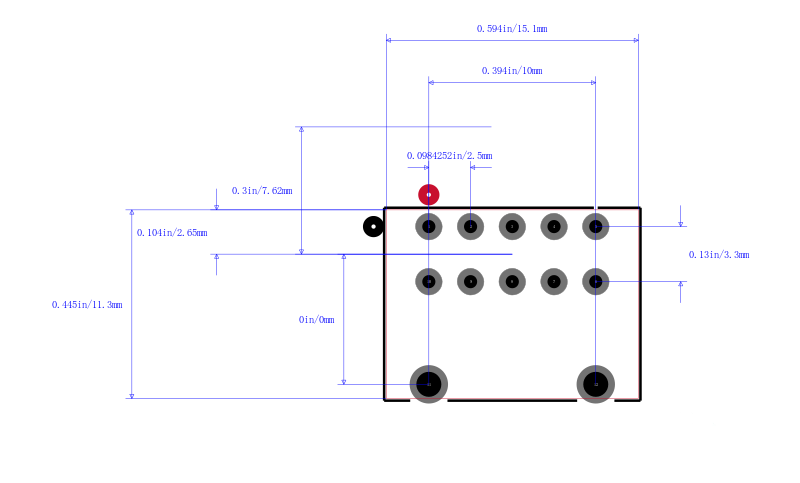

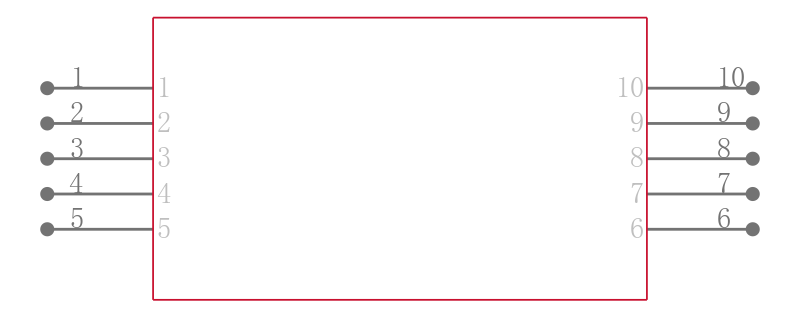

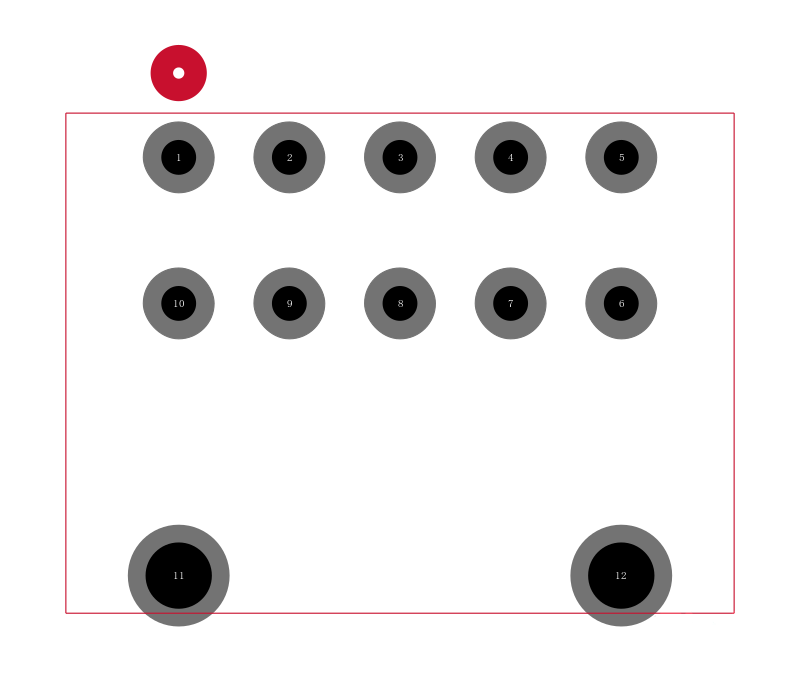

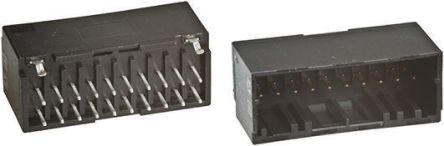

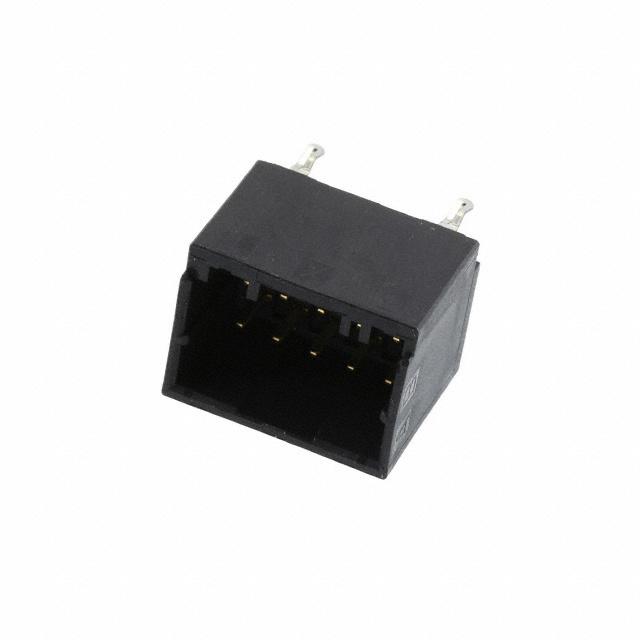

1-1827875-5

TE CONNECTIVITY  1-1827875-5  线至板连接器, Dynamic D-1200D系列, 10 触点, 针座, 2.5 mm, 通孔安装, 2 排

Dynamic 1200 系列管座

动态系列的 D-1200 系列管座具有镀锡固定支脚，以提高稳定性。 D-1200 系列管座的印刷电路板焊接尾线为镀锡，触点插片为镀金。 这些 D-1200 系列管座的建议印刷电路板厚度为 1.0 至 1.6mm。 D-1200 系列管座的设计有助于在配接期间防止触点弯曲。

### 注

有关匹配的 D-1200 系列外壳，请参见典型库存号 706-4424。

### TE Connectivity Dynamic 1000 系列

欧时:
TE Connectivity PCB 针座 Dynamic 1000 系列 10路 2.5mm节距 2排 直向 1-1827875-5, 焊接端接, 5A, 通孔

得捷:
CONN HEADER VERT 10POS 2.5MM

立创商城:
2.5mm 2x5P 直插

e络盟:
线至板连接器, 2.5 mm, 10 触点, 针座, Dynamic D-1200D系列, 通孔安装, 2 排

艾睿:
Use this shrouded 1-1827875-5 connector from TE Connectivity when board-to-board interconnects is required. This HDR connector&s;s 10 contacts that are made out of copper alloy and plated with gold over nickel. It has a header type gender. It has a maximum voltage rating of 250 VAC. It has a straight body orientation. This is a 2-row connector. Its pitch is 2.5 mm. This device has a maximum current rating of 5 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. 1-1827875-5 is housed in black polyester. This product is 15.1 mm long, 12.45 mm tall and 11.3 mm deep. It uses the solder termination method. This connector has an operating temperature of -55 to 105 °C.

Allied Electronics:
Dynamic 1000 Series, 2.5mm Pitch 10 Way 2 Row Straight PCB Header, Solder Term, 5A

安富利:
Conn Shrouded Header HDR 10 POS 2.5mm Solder ST Thru-Hole Tube

Chip1Stop:
Conn Shrouded Header HDR 10 POS 2.5mm Solder ST Thru-Hole Tube

Verical:
Conn Shrouded Header HDR 10 POS 2.5mm Solder ST Top Entry Thru-Hole Tube

Newark:
# TE CONNECTIVITY  1-1827875-5  Wire-To-Board Connector, Dynamic D-1200D Series, Through Hole, Header, 10, 2.5 mm

MASTER:
DYNAMIC D1200D 2.5mmPITCH HDR ASSY V-TYPE 4-20POS

Powell:
Dynamic Series Connectors

Online Components:
DYNAMIC 1200D HDR ASSY V 10PX BLACK GOLD

Win Source:
DYNAMIC 1200D HDR ASSY V 10PX BL

Electro Sonic:
DYNAMIC 1200D HDR ASSY V 10PX BLACK GOLD
