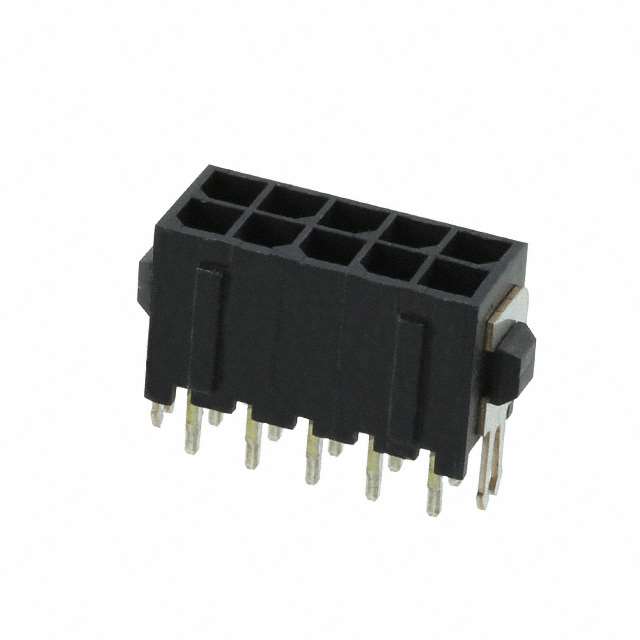

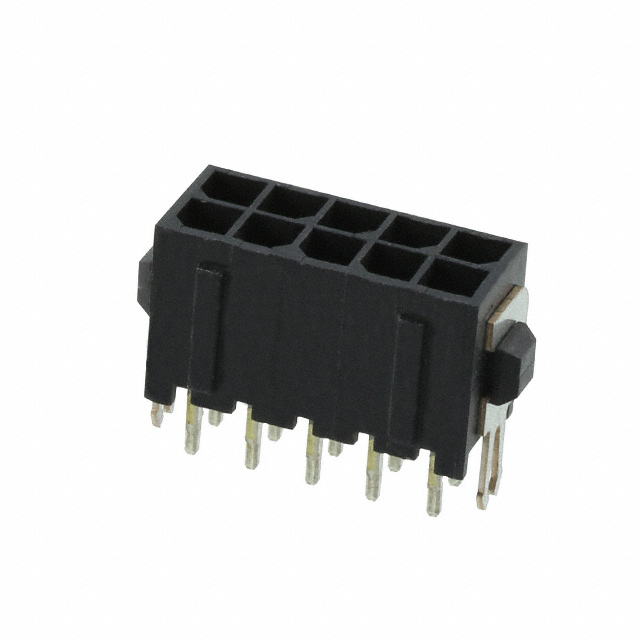

1-794682-0

Conn Power HDR 10POS 3mm Solder ST Thru-Hole 10 Terminal 1Port Tray

Connector Header Through Hole 10 position 0.118" 3.00mm

得捷:
CONN HEADER VERT 10POS 3MM

艾睿:
Whether you have an AC or DC power entry module, this 1-794682-0 power connector from TE Connectivity comes in a variety of types to support all sorts of modules. This HDR connector&s;s 10 contacts that are made out of brass and plated with gold over nickel. Its pitch is 3 mm. It has a maximum voltage rating of 250 VDC|250VAC. It has a straight body orientation. It has a header type gender. This connector has a single port. 1-794682-0 is housed in nylon. This device has a maximum current rating of 5 A/contact. The component will be shipped in tray format. This product is 19 mm long, 9.24 mm tall and 8.67 mm deep. Its 10 terminals use the solder termination method. This power connector has an operating temperature range of -40 °C to 105 °C.

Powell:
3mm Centerline, 250V, 5 A max.
