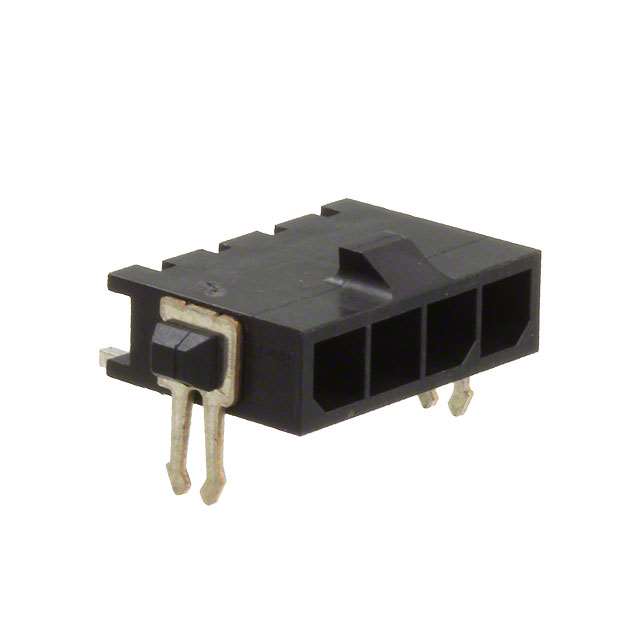

1445056-4图片6
1445056-4图片7
1445056-4图片8
1445056-4图片9
1445056-4图片10
1445056-4图片11
1445056-4概述

Conn Power HDR 4POS 3mm Solder RA SMD 4 Terminal 1Port

Conn Power HDR 4 POS 3mm Solder RA SMD 4 Terminal 1 Port T/R

Search Keywords:

wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector


得捷:
CONN HEADER SMD R/A 4POS 3MM


艾睿:
Conn Power HDR 4 POS 3mm Solder RA SMD 4 Terminal 1 Port T/R


安富利:
Conn Power HDR 4 POS 3mm Solder RA SMD 4 Terminal 1 Port


Verical:
Conn Power HDR 4 POS 3mm Solder RA SMD 4 Terminal 1 Port T/R


MASTER:
Conn Power HDR 4 POS 3mm Solder RA SMD 4 Terminal 1 Port T/R


Powell:
3mm Centerline, 250V, 5 A max.


Online Components:
Conn Power HDR 4 POS 3mm Solder RA SMD 4 Terminal 1 Port T/R


Electro Sonic:
Conn Power HDR 4 POS 3mm Solder RA SMD 4 Terminal 1 Port T/R


1445056-4中文资料参数规格
技术参数

触点数 4

触点电镀 Tin Lead

绝缘电阻 1000 MΩ

排数 1

方向 Right Angle

易燃性等级 UL 94 V-0

针脚数 4

安装角度 90.0 °

额定电流Max 5A/触头

工作温度Max 105 ℃

工作温度Min -40 ℃

额定电压Max 250 VAC

接触电阻Max 20 mΩ

封装参数

安装方式 Surface Mount

引脚间距 3.00 mm

外形尺寸

长度 16.0 mm

高度 5.67 mm

引脚间距 3.00 mm

物理参数

外壳颜色 Black

颜色 Black

触点材质 Brass

工作温度 -40℃ ~ 105℃

外壳材质 Nylon

其他

产品生命周期 Superseded

包装方式 Tape

制造应用 通用

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

ELV标准 Non-Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536698000

数据手册

在线购买1445056-4
型号: 1445056-4
描述:Conn Power HDR 4POS 3mm Solder RA SMD 4 Terminal 1Port
替代型号1445056-4
型号/品牌 代替类型 替代型号对比

1445056-4

TE Connectivity 泰科

当前型号

当前型号

2-1445056-4

泰科

功能相似

1445056-4和2-1445056-4的区别
